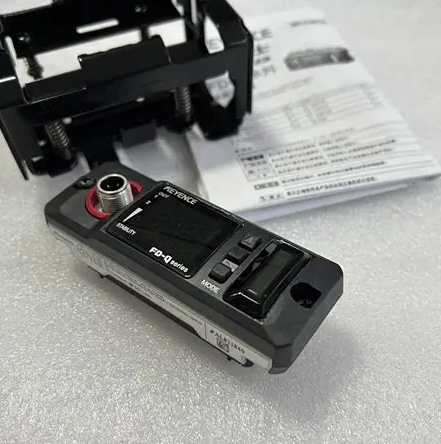

Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor
Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor
Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor
Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor
Specifications
Model Number :
FD-Q10C
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Indicator :
Power indicator
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
MOQ :
1
Line Voltage :
200 to 600 Volts AC
Description

Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor


Manufacturer :KEYENCE
Product No. : FD-Q10C

Specification Item FD‑Q10C Parameter Details
Device Model FD‑Q10C
Applicable Pipe Outer Diameter 8A (1/4 inch): Ø13‑Ø16 mm; 10A (3/8 inch): Ø16‑Ø18 mm
Compatible Pipe Material Metal pipe, hard resin pipe
Detectable Liquid Medium Deionized‑water, machine‑oil, adhesive, industrial chemical and other non‑corrosive process liquids
Pipe‑wall Working‑Temperature Range 0 °C ~ 85 °C, no frost on pipe exterior
Max Rated Flow Rate 20 L/min (8A pipeline), 30 L/min (10A pipeline)
Zero‑cut‑off Flow 1.0 L/min (factory‑default, adjustable)
Selectable Response Speed 0.5 s, 1.0 s, 2.5 s, 5 s, 10 s, 30 s, 60 s
Measurement Repeatability ±2.0%‑±0.15% full‑scale, subject to configured response‑time
Display Configuration Dual‑row 4‑digit 7‑segment LED, stability‑indicator lamp and status LED, refresh rate 3 Hz
Power Supply 20‑30 VDC Class‑2 power, permitted peak‑to‑peak ripple ≤10 %, consumption current ≤100 mA (load excluded)
Signal Output Switchable 4‑20 mA / 0‑20 mA analogue signal, NPN/PNP switch output; IO‑Link industrial communication interface
External Input Functions Accumulated‑flow reset, zero‑flow trigger, zero‑point calibration


Performance Parameter Technical Specification
Ingress‑protection Grade IP65, IP67 (IEC60529)
Housing Raw Material PPS, PES, PBT engineering‑plastic; fastener SUS304 stainless‑steel
Sensor Contact Pad Special‑purpose elastic rubber
Mounting‑bracket Material SUS304 stainless‑steel and PA plastic
Net Weight Approx. 340 g including installation bracket
Operating Ambient‑Temperature ‑10 °C ~ +60 °C
Permitted Humidity 35 %‑85 % RH, non‑condensing environment
Vibration Resistance 10–55 Hz, 1.5 mm peak‑to‑peak amplitude, two‑hour endurance testing for X‑Y‑Z axes
Shock‑resistance Rating 100 m/s²,16‑millisecond pulse, 1000‑time impact test for three orthogonal directions
Built‑in Protection Circuits Reverse‑polarity power‑supply safeguard, surge‑voltage defence, short‑circuit‑protection for output terminals


Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor

Brand


Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor

Below are the TOP BRANDS we handle in the past 14 years:

Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
