Specifications
Model Number :
FS-N11N
Indicator :
Power indicator
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
MOQ :
1
Line Voltage :
200 to 600 Volts AC
Description

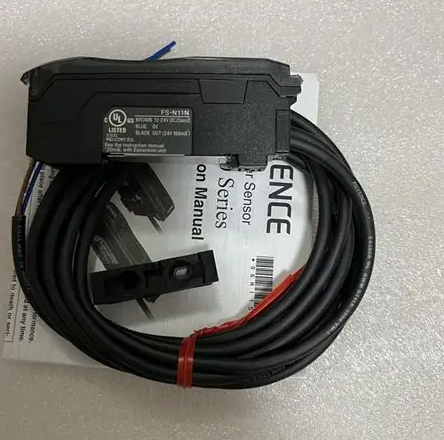

Keyence FS-N11N Digital Fiber Optic Sensor Amplifier


Manufacturer :KEYENCE
Product No. : FS-N11N

Parameter Specification
Model Number FS-N11N
Brand Keyence
Series FS-N Digital Fiber Optic Sensor
Unit Classification Main Unit, Cable Type
Control Output 1-channel NPN open collector
Max Output Current 100 mA (standalone); 20 mA (when cascaded)
Residual Output Voltage ≤ 1 V
Supply Voltage 12–24 VDC ±10 %, ripple (P-P) ≤10 %
Power Consumption Normal: ≤900 mW; Eco ON: ≤800 mW; Eco Full: ≤470 mW
Light Source 4-element Red LED, 630 nm
Response Time Options 50 µs / 250 µs / 500 µs / 1 ms / 4 ms / 16 ms
APC Function Switchable ON / OFF (Factory default: OFF)
Maximum Cascading Quantity 16 amplifiers
External Input Supported for remote teach / reset
Protection Circuit Reverse polarity protection


Parameter Specification
Housing Material Polycarbonate
Mounting Method 35 mm DIN rail mounting
Protection Class IP66
Operating Ambient Temperature -20 °C ~ +55 °C
Storage Temperature -25 °C ~ +60 °C
Relative Humidity 35 % ~ 85 % RH, non-condensing
Ambient Light Resistance Incandescent lamp ≤20,000 lux; Sunlight ≤30,000 lux
Vibration Resistance 10–55 Hz, double amplitude 1.5 mm, 2 hours per X/Y/Z axis
Shock Resistance 500 m/s², 3 shocks per X/Y/Z axis
Net Weight Approx. 75 g
Compatible Fiber Heads Keyence FU series fiber optic units
Certifications CE, UL
Compliance RoHS


Keyence FS-N11N Digital Fiber Optic Sensor Amplifier


Brand


Keyence FS-N11N Digital Fiber Optic Sensor Amplifier


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence FS-N11N Digital Fiber Optic Sensor Amplifier




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence FS-N11N Digital Fiber Optic Sensor Amplifier

Below are the TOP BRANDS we handle in the past 14 years:

Keyence FS-N11N Digital Fiber Optic Sensor Amplifier


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
