HPRW12-35kv
HPRW12-35kv
Specifications
Weight (kg) :
14
Power- frequency withstand Voltage (kV) :
70
Place of Origin :
China
Breaking Current (A) :
8000
Delivery Time :
5-10 Days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Current (A) :
200
Dimensions (cm) :
71×36×15
Packaging Details :
Carton
Impulse Volage (BIL) :
170
Rated Volage (kV) :
35
Type :
HPRW12
Leakage distance (mm) :
1100
Price :
Negotiate
Description

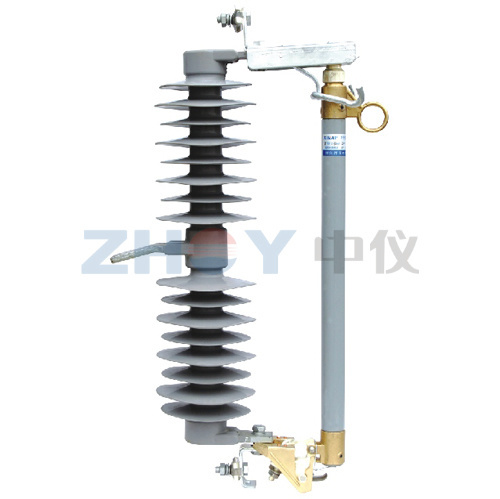

HPRW12 Series: Outdoor High-Voltage Drop-out Fuse

The HPRW12 is a professional-grade outdoor high-voltage protection device designed for distribution transformers and electrical lines. It provides critical short-circuit and overload protection, ensuring the integrity and safety of electrical distribution networks.

Reliable Protection: Offers robust short-circuit and overload protection for high-voltage systems.
Advanced Construction: Features an insulating bracket, inner arc tube, and high-durability outer phenolic or epoxy glass cloth tube.
Operational Flexibility: Equipped with auxiliary contacts and arc chutes to facilitate safe opening and load-current switching.

Product Attributes

Application: Outdoor Distribution Lines
Function: Short-circuit & Overload Protection
Components: Insulating Bracket, Fuse Tube, Static & Moving Contacts

Technical Specifications

Type Voltage (kV) Current (A) Breaking Current (A)
HPRW12 35 100 6300
HPRW12 35 200 8000
BIL (kV) Power-Freq Voltage (kV) Leakage Dist (mm) Weight (kg)
170 70 1100 14-15
