RW12-15KV
RW12-15KV
Specifications
Power- frequency withstand Voltage (kV) :
45
Price :
Negotiate
Rated Current (A) :
100
Delivery Time :
5-10 Days
Dimensions (cm) :
50×33×11.5
Impulse Volage (BIL) :
125
Weight (kg) :
8.8
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Place of Origin :
China
Breaking Current (A) :
6300
Type :
RW12
Rated Volage (kV) :
15
Packaging Details :
Carton
Leakage distance (mm) :
330
Description

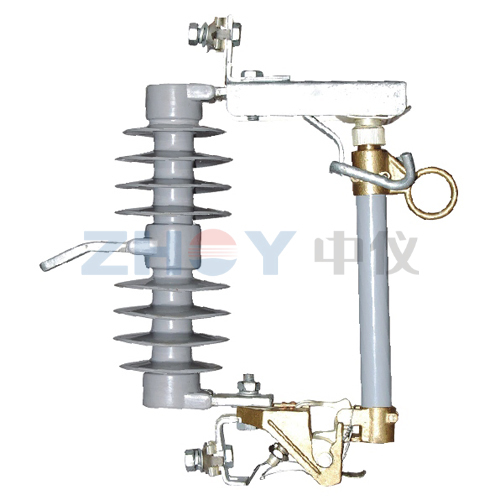

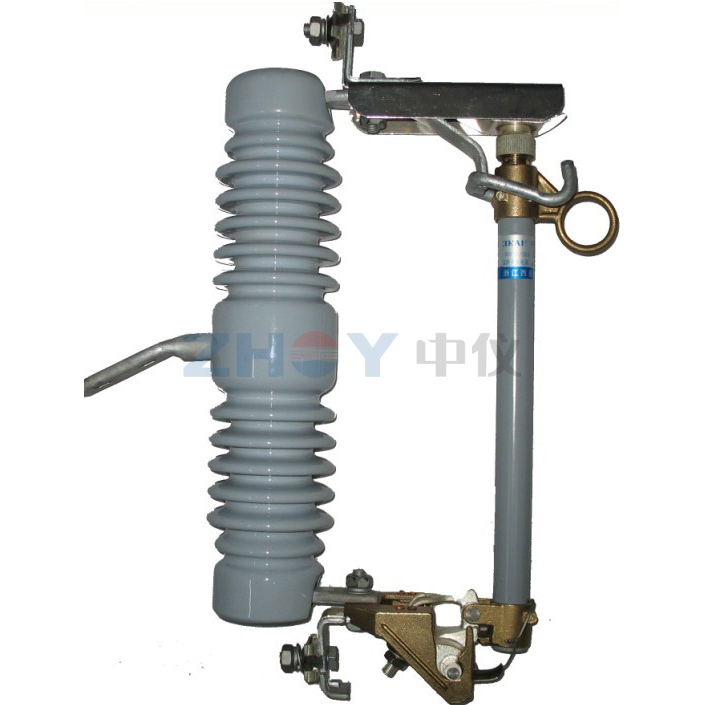

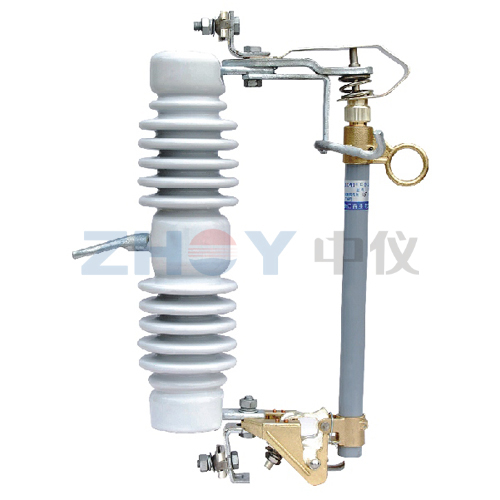

RW12 Series Outdoor High-Voltage Drop-out Fuse

The RW12 series is a high-performance outdoor high-voltage protection device designed for distribution transformers and electrical lines. It provides essential short-circuit and overload protection while allowing for load-current switching.

Key Features & Applications

  • Robust Construction: Features an insulating bracket, fuse tubes with inner arc-extinguishing technology, and durable epoxy glass cloth outer tubes.
  • Reliable Protection: Specifically engineered for the high-voltage side of distribution transformers.
  • Versatile Operation: Supports both short-circuit protection and manual load-current interruption.
  • Industry Use: Ideal for electrical infrastructure, utility distribution networks, and industrial power support.

Product Attributes

⚡
Product Type:
Outdoor High-Voltage Drop-out Fuse
