RW12-12KV
RW12-12KV
Specifications
Rated Current (A) :
100
Price :
Negotiate
Place of Origin :
China
Weight (kg) :
7.5
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
Carton
Power- frequency withstand Voltage (kV) :
42
Leakage distance (mm) :
230
Breaking Current (A) :
6300
Delivery Time :
5-10 Days
Rated Volage (kV) :
12
Dimensions (cm) :
41×31×12.5
Type :
RW12
Impulse Volage (BIL) :
110
Description

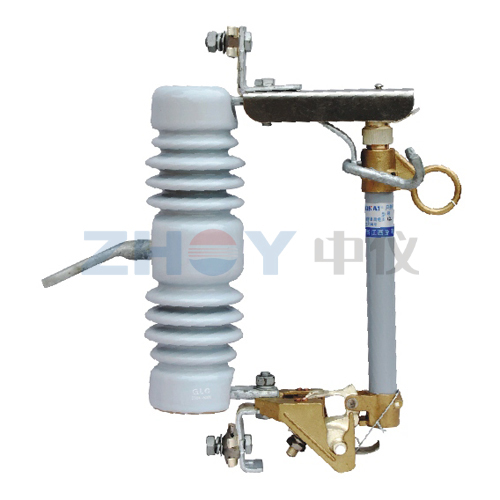

Outdoor High-Voltage Drop-out Fuse

The Drop-out fuse is a high-voltage protection device designed for outdoor electrical systems. It is primarily installed on the high-voltage side of distribution transformers or support links of distribution lines to provide essential short-circuit and overload protection.

  • Effective short-circuit and overload protection
  • Capable of opening/closing load currents
  • Equipped with arc chutes for enhanced flexibility
  • Durable construction with inner arc and outer epoxy glass tubes

Technical Specifications

TypeRated Voltage (kV)Rated Current (A)Breaking Current (A)
RW12121006300
RW121220012500
BIL (kV)Power-Freq Voltage (kV)Leakage Dist. (mm)Weight (kg)
110422307.5 - 8
