RW12-33KV
RW12-33KV
Specifications
Weight (kg) :
18
Rated Current (A) :
200
Breaking Current (A) :
12500
Type :
RW12
Leakage distance (mm) :
600
Power- frequency withstand Voltage (kV) :
70
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Volage (kV) :
33
Impulse Volage (BIL) :
170
Price :
Negotiate
Delivery Time :
5-10 Days
Place of Origin :
China
Dimensions (cm) :
60×32×14
Packaging Details :
Carton
Description

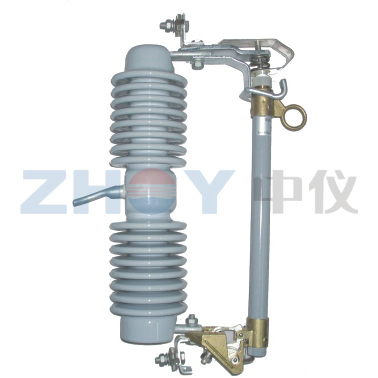

High-Voltage Drop-Out Fuse

The Drop-out fuse and pull-load drop-out fuse is a specialized outdoor high-voltage protection device. It is designed for installation on the high-voltage side of distribution transformers or distribution lines to provide essential short-circuit and overload protection, as well as the ability to open/close load currents.

Reliable Protection: Safeguards transformers and lines against short circuits and overloads.
Load Switching: Capable of opening and closing load currents effectively.
Durable Construction: Features an insulating bracket and robust fuse tubes composed of inner arc tubes and outer epoxy glass cloth or phenolic paper.

Product Attributes

ApplicationOutdoor High-Voltage Protection
Primary FunctionShort-circuit & Overload Protection
MaterialInsulating bracket, Arc tube, Phenolic/Epoxy glass tube

Technical Specifications

Type Rated Voltage (kV) Rated Current (A) Breaking Current (A)
RW12331006300
RW123320012500
BIL (kV) Power-Freq Voltage (kV) Weight (kg) Dimensions (cm)
1707017-1860×32×14
