RW10-12KV
RW10-12KV
Specifications
Leakage distance (mm) :
230
Power- frequency withstand Voltage (kV) :
42
Rated Current (A) :
200
Packaging Details :
Carton
Weight (kg) :
8
Breaking Current (A) :
6300
Price :
Negotiate
Dimensions (cm) :
41×31×12.5
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Volage (kV) :
12
Delivery Time :
5-10 Days
Impulse Volage (BIL) :
110
Type :
RW10
Place of Origin :
China
Description

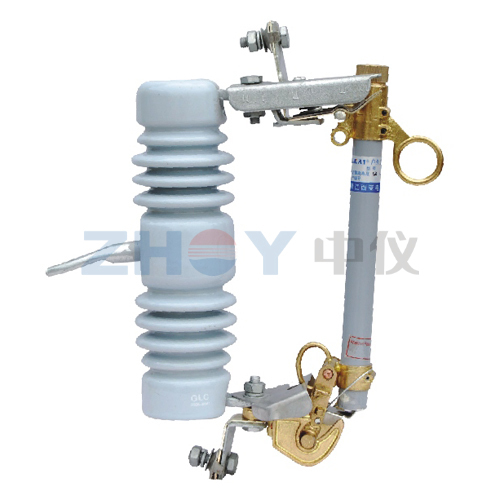

RW10 Series Outdoor High-Voltage Drop-out Fuse

The RW10 Drop-out Fuse is a high-performance outdoor protection device designed for high-voltage distribution systems. It serves as a critical safeguard for distribution transformers and lines, providing reliable protection against short circuits and overloads, while enabling safe operation under load current.

Key Advantages & Applications

  • ✅ Comprehensive Protection: Effectively handles short circuits and overload scenarios.
  • ✅ Load Switching: Capable of opening and closing under load current.
  • ✅ Robust Construction: Features an insulating bracket, inner arc tube, and high-durability phenolic or epoxy glass cloth outer tube.
  • ✅ Versatile Use: Designed for high-voltage side installation on distribution transformers and support links.

Technical Specifications

Type Rated Voltage (kV) Rated Current (A) Breaking Current (A)
RW10121006300
RW101220012500
Impulse Voltage (BIL) Power-freq Withstand (kV) Weight (kg) Dimensions (cm)
110427.541×31×12.5
11042841×31×12.5
