RW12-15KV
RW12-15KV
Specifications
Breaking Current (A) :
12500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Dimensions (cm) :
48×34×11.5
Delivery Time :
5-10 Days
Leakage distance (mm) :
330
Weight (kg) :
9.5
Power- frequency withstand Voltage (kV) :
45
Type :
RW12
Rated Current (A) :
200
Price :
Negotiate
Rated Volage (kV) :
15
Impulse Volage (BIL) :
125
Place of Origin :
China
Packaging Details :
Carton
Description

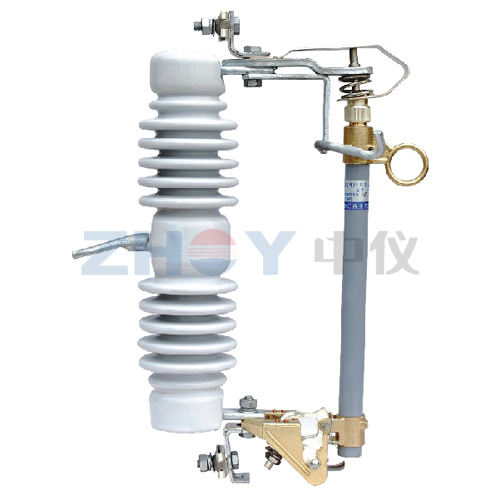

Drop-out Fuse & Load Drop-out Fuse

The Drop-out fuse is a high-voltage protection device designed for outdoor electrical distribution systems. It is installed on the high-voltage side of distribution transformers or distribution lines to provide essential short-circuit and overload protection.

Key Benefits & Applications

  • Reliable Protection: Effectively guards transformers and lines against electrical faults.
  • Versatile Operation: Capable of opening and closing load currents.
  • Advanced Construction: Features an insulating bracket, fuse tubes with inner arc tubes, and durable phenolic or epoxy glass cloth outer tubes.
  • Enhanced Flexibility: Load drop-out models include auxiliary contacts and arc chutes for optimized performance.

Product Attributes

Application

Outdoor High-Voltage Distribution

Core Function

Short circuit & Overload protection

Material

Phenolic paper / Epoxy glass cloth

Technical Specifications

TypeRated Voltage (kV)Rated Current (A)Breaking Current (A)
RW12151006300
RW121520012500
TypeBIL (kV)Weight (kg)Dimensions (cm)
RW12125948×34×11.5
RW121259.548×34×11.5
