RNCX-15
RNCX-15
Specifications
Weight (kg) :
8.5
Place of Origin :
China
Leakage distance (mm) :
330
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-10 Days
Type :
RNCX-15
Dimensions (cm) :
48×33×11.5
Rated Current (A) :
100
Power- frequency withstand Voltage (kV) :
45
Packaging Details :
Carton
Rated Volage (kV) :
15
Breaking Current (A) :
6300
Price :
Negotiate
Impulse Volage (BIL) :
125
Description

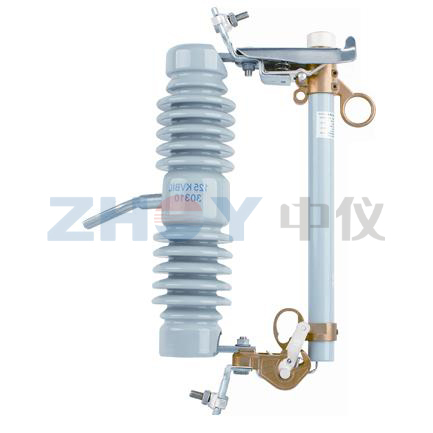

High-Voltage Drop-Out Fuse (RNCX Series)

The RNCX series drop-out fuse is a high-performance outdoor protection device designed for electrical distribution systems. It serves as essential protection for distribution transformers and lines against short circuits and overloads, while also allowing for safe load-current switching.

Key Features & Advantages

  • ✅ Robust Construction: Composed of an insulating bracket and high-durability fuse tubes.
  • ✅ Advanced Materials: Features an inner arc tube paired with a phenolic paper or epoxy glass cloth outer tube for superior heat resistance.
  • ✅ Reliable Protection: Engineered for effective short-circuit and overload protection in outdoor high-voltage environments.
  • ✅ Operational Versatility: Capable of opening and closing load currents under standard distribution conditions.

Product Attributes

Application: Outdoor High-Voltage Protection
Component Type: Insulating Bracket & Fuse Tube

Technical Specifications

Type Rated Voltage (kV) Rated Current (A) Breaking Current (A)
RNCX-15151006300
RNCX-151520012500
