HRW12-12KV
HRW12-12KV
Specifications
Leakage distance (mm) :
380
Delivery Time :
5-10 Days
Weight (kg) :
5
Breaking Current (A) :
6300
Rated Current (A) :
100
Type :
HRW12
Dimensions (cm) :
40×30×11
Impulse Volage (BIL) :
125
Packaging Details :
Carton
Price :
Negotiate
Rated Volage (kV) :
12
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Power- frequency withstand Voltage (kV) :
45
Place of Origin :
China
Description

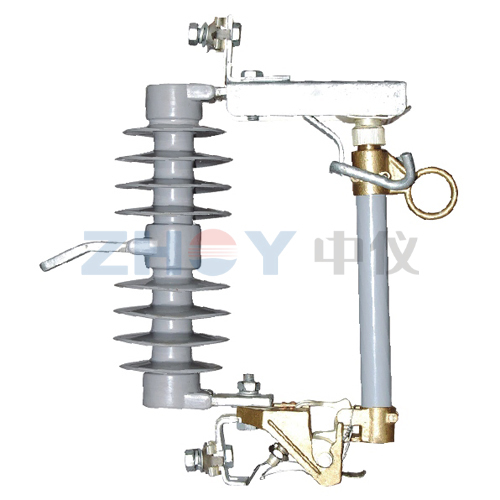

HRW12 Series High-Voltage Drop-out Fuse

Product Overview

The HRW12 series is an outdoor high-voltage protection device designed for distribution transformers and electrical lines. It provides critical short-circuit and overload protection, as well as load-current switching capabilities.

  • Robust Construction: Features an insulating bracket with durable inner arc tubes and outer phenolic paper or epoxy glass cloth tubes.
  • Enhanced Functionality: Equipped with auxiliary contacts and arc chutes for reliable load-current breaking.
  • Versatile Application: Ideal for high-voltage side protection in distribution networks.

Key Attributes

Device TypeOutdoor High-Voltage Fuse
Primary FunctionShort-circuit & Overload Protection
InstallationDistribution Transformer / Line Support

Technical Specifications

Type Voltage (kV) Current (A) Breaking Current (A)
HRW12121006300
HRW121220012500
BIL (kV) Power-Freq Voltage (kV) Weight (kg) Dimensions (cm)
125454.540×30×11
125455.040×30×11
