ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
ZBDynamiX ZPA-Lite-43-15-36-D Integrated Planetary Joint Actuator | 33 Nm Peak Torque, 80 rpm, OD56 mm
Specifications
Delivery Time :
15 work days
Brand Name :
ZBDynamiX
Model Number :
ZPA-Lite-43-15-36-D
Price :
To be negotiate
Packaging Details :
Standard export package
Supply Ability :
1000+ units
Payment Terms :
Paypal，T/T
Place of Origin :
CHINA
MOQ :
2
Description

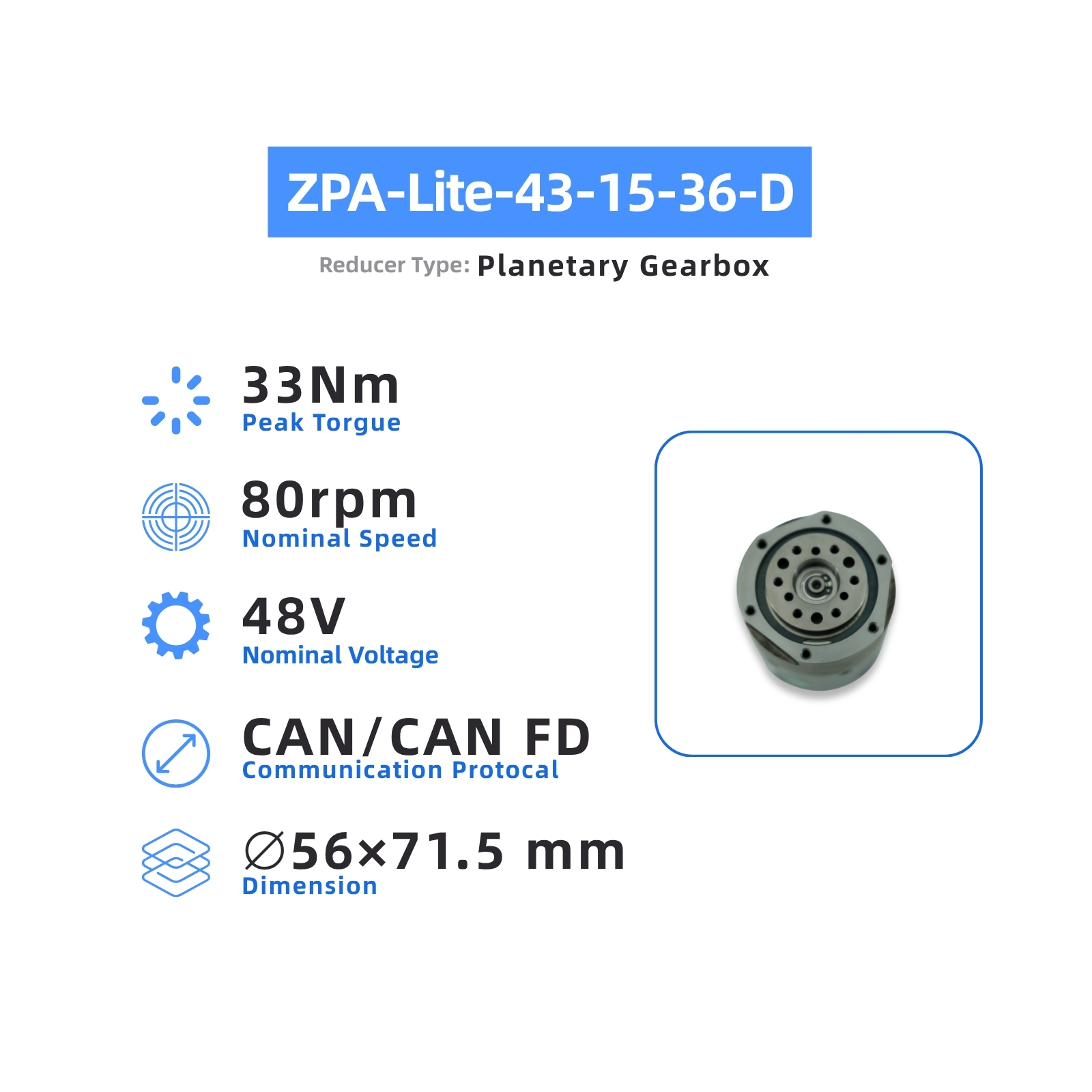

Key Attributes

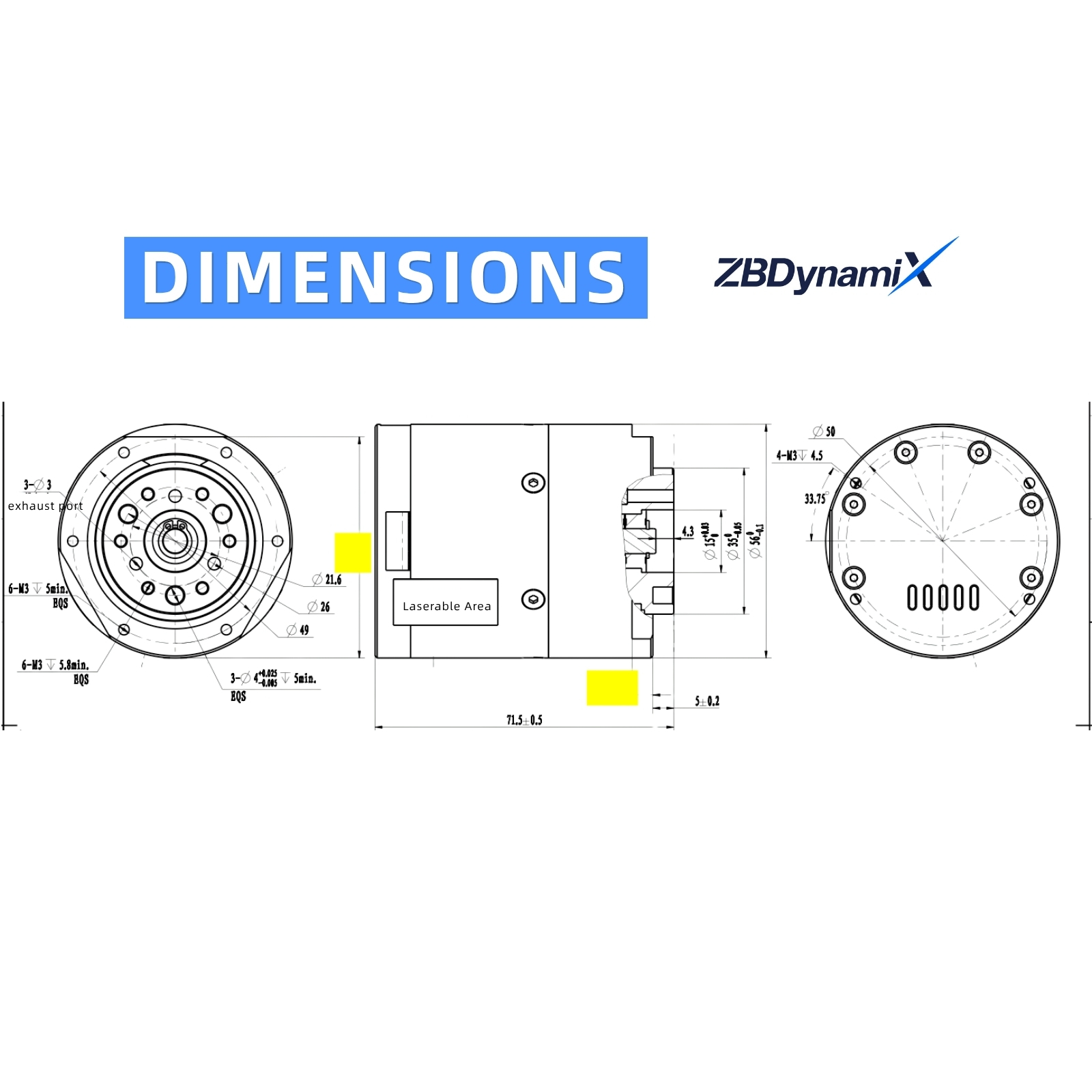

Dimension ⌀56×71.5 mm
Reduction Ratio 36
Mass 620g
Communication Protocol
CAN/CAN FD
Nominal Voltage 48V
Nominal Torque 12Nm
Nominal Speed 80RPM
Nominal Current 3.2A(rms)
Torque Constant 4.28Nm/A
Pole Pairs 14
Duty Type s2
IP Rating IP40
Cooling Method IC410
Operating Temperature -20℃~50℃
Insulation Class F
Dielectric Strength 500V 1kHz 1A 1ms
Insulation Resistance 100MΩ 20℃
Temperature Sensor NTC MF52B 103F3950
Noise Level 60dB/0.5m
Protection Functions Overvoltage Protection
Overcurrent Protection
Overtemperature Protection
