15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
15000lbs 4*4 Series Electric Winch Hoist Electric Power Source CE Certification
Specifications
Brand Name :
YINGER HOIST
Model Number :
15000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
Gear Train :
3-stage planetary gear
Capacity :
15000lbs
Fairlead :
4-way roller fairlead
Finish :
Dark grey powder coat
Type :
offroad winch
Description

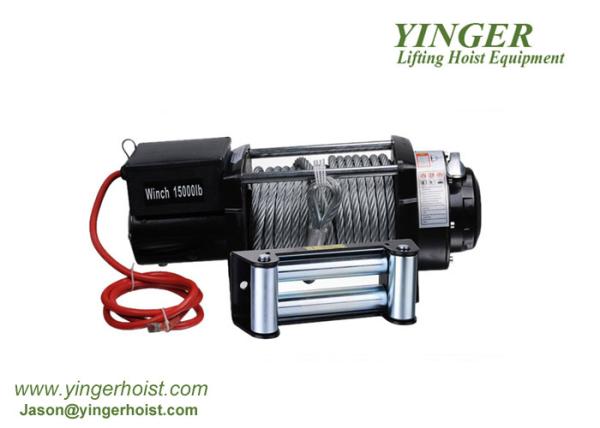

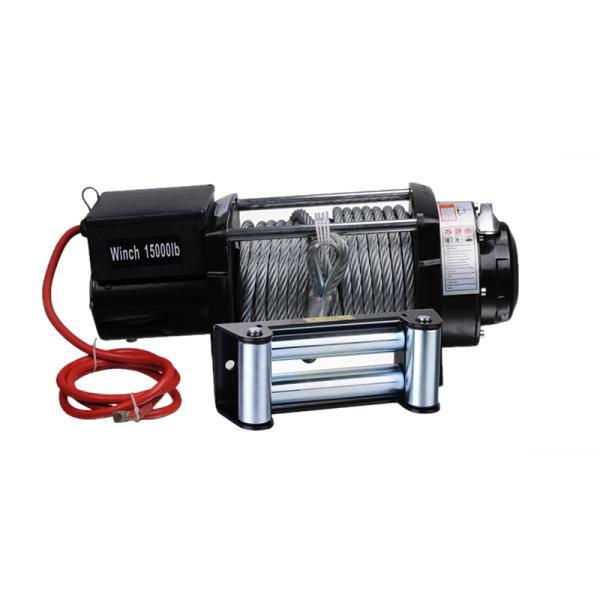

12v 15000lbs 4*4 Series Wound Electric Winch With Ce Certification

1. Free Spooling Clutch
2. Automatic Breaking Action (mechanical break)
3. Specially designed differential planetary gearing for heavy duty

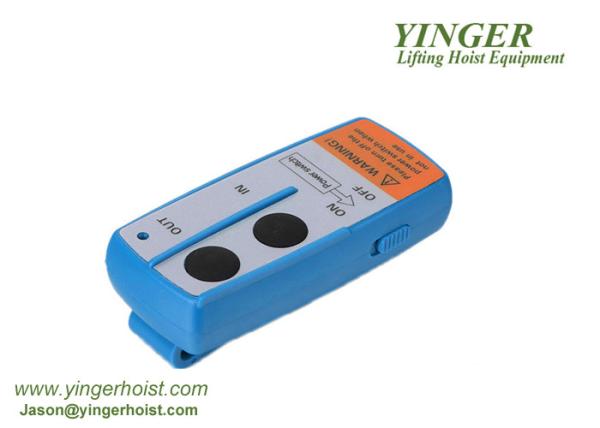

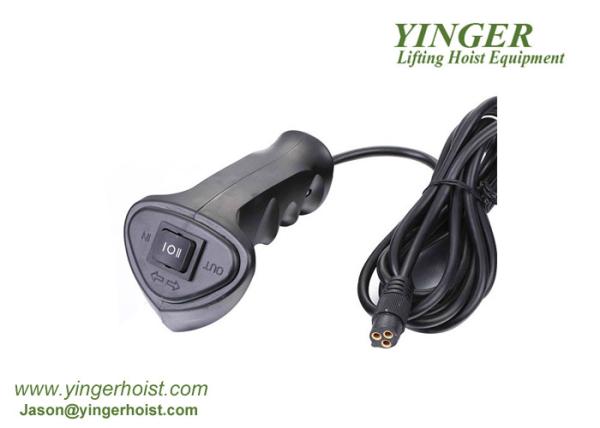

4. Solenoid control box supplied

Pull,Speed,Amperes,Volts(First Layer)
Line Pull(lbs./kg)
Line Speed FPM(m/min)
Motor(Amps)
0
21.0ft(6.4m)
75
4000(1814)
12.4ft(3.8m)
220
12000(5443)
8.5ft(2.6m)
280
15000(6800)
6.5ft(2.0m)
330

Line Pull And Rope Capacity In Layer
Layer
Rated Line Pull(lbs./kgs)
Total Rope On Drum(ft/m)
1
15000(6800)
16.2(5.0)
2
11530(5188)
62.1(19.0)
3
6700(3100)
91.0(28.0)

Rated Line pull
15000lbs(6800)
Motor
1.8kw,2.4HP,4.2V DC Permenent Magnet
Gearing
Differential Planetary
Gear ratio
318:1
Free spooling clutch
Pull and turn
Braking Action
AUTOMATIC IN THE -DRUM
Wire Rope
12mm*28m
Dimensions
516mm(L)x160mm(W)x220mm(H)
Drum Diameter
88
Drum Length
266
N.W./G.W.
53kgs/52kgs (1pcs)
Meas
57x25x27cm (1pcs)
