Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery
Specifications
Brand Name :
YINGER HOIST
Model Number :
2000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Description

12v 24v 2000lbs Wire Rope Electric Winch Offroad Winch 4*4 Winch Atv Utv Winch Hoist

Electric Winch(DC V12) is the most common winch, driven by vehicle's own power system. It works in such a way that converting automobile engines power into electricity power to drive the motors and drag noose. It enlarges the output power by the inside planetary reducer to achieve deceleration & torsion enhancement and pull cargo.

OEM/ODM Services Customized Logo&Packaging
Quality Certification Samples available to approval the quality
Sample Charge Refund agreement Refunding custcomers samples cost after order
Secure Payment Alibaba Trade Assurance Services 100% protection
Faster Delivery Shipping mass goods within 35 days after payment
After-Sale Service ENJOIN Team will always on your side

LINE PULL AND ROPE CAPACITY IN LAYER
Layer of cable
1
2
3
4
5
Rated line pull
Lbs
2000
1667
1389
1198
1053
Kgs
907
756
630
543
477
Cable of layer
Ft
6.7
15.1
24.5
35.7
42.6
M
2.04
4.60
7.47
10.88
12.98

LINE SPEED & AMP DRAW-FIRST LAYER
Line pull
Lbs
0
500
1000
2000
Kgs
0
227
454
907
Line speed
Fpm
10.43
9.7
7.5
6.5
Mpm
3.18
2.96
2.29
1.98
Amp
A
10
45
70
130

Wire Rope Electric Winch Hoist 12V 24V 2000lbs OEM / ODM Accepatble Fast Delivery

Rated Line Pull
2000LB(907kg) single-line
Motor
1.2hp/0.9kw 12V, Permanent Magnet Motor
Gear Train
1-stage planetary
Gear Reduction Ratio
153:1
Clutch
pull and push
Cable
φ5/32”×42.6” (φ4mm×13m)

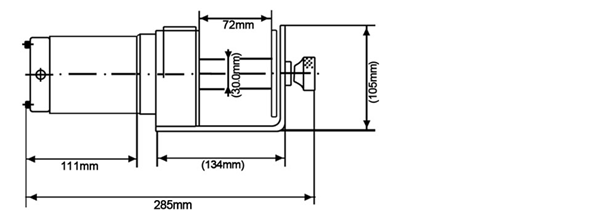

Drum Size
φ1.3”×2.83”(φ32mm×72mm)
Overall Dimensions
(L×W×H)11.0”×4.1”×4.1”(280×105×105mm)
Gross Weight
12.0lbs(5.5kg)
Duty Cycle
Intermittently
Fairlead
not included
Package
1pc/box, 12.4” ×4.1” ×7.1”(315×155×180mm)
Mounting Bolt Pattern
3.15”(80mm )

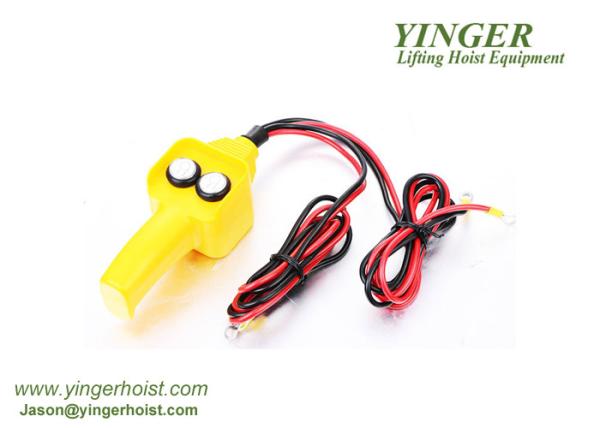

Remote Control
included
