3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake
Specifications
Brand Name :
YINGER HOIST
Model Number :
3000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
voltage :
12v 24v
Cabel :
Wire rope or Synthetic
Brake :
winch automatic brake
Warranty :
0ne year
Gear reduction ratio :
153:1
Description

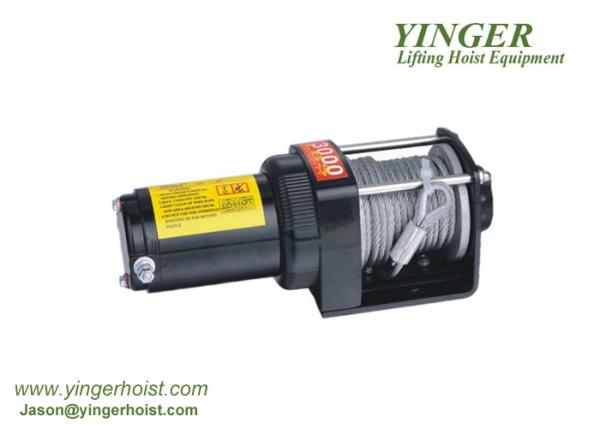

12v 24v 2000lbs Wire Rope Electric Winch Offroad Winch 4*4 Winch Atv Utv Winch Hoist

Electric Winch(DC V12) is the most common winch, driven by vehicle's own power system. It works in such a way that converting automobile engines power into electricity power to drive the motors and drag noose. It enlarges the output power by the inside planetary reducer to achieve deceleration & torsion enhancement and pull cargo.

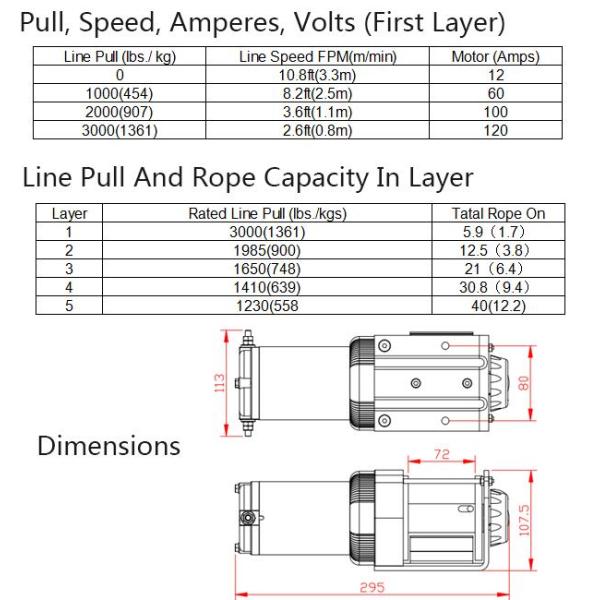

Rated Line Pull
3000LB(1360kg) single-line
Motor
3.0hp/2.2kw 12V, Permanent Magnet Motor
Gear Train
1-stage planetary
Gear Reduction Ratio
153:1
Clutch
pull and push
Cable
φ3/16”×42.6” (φ4.76mm×13m)
Drum Size
φ1.3”×2.83”(φ32mm×72mm)
Overall Dimensions
(L×W×H)12.8”×4.1”×4.1”(325×105×105mm)
Gross Weight
21lbs(9.5kg)
Duty Cycle
Intermittently
Fairlead
4-way roller fairlead
Package
1pc/box 410×320×150mm
Mounting Bolt Pattern
3.15”(80mm )

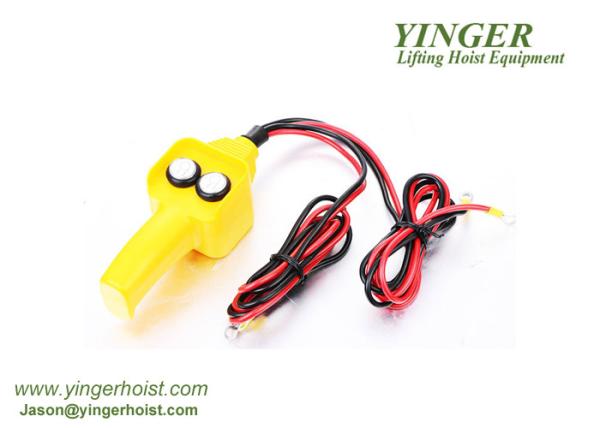

Remote Control
included
Note
solenoid can be chosen, Usd1.5 more for 120A

3000lbs Mini Electric Winch Hoist Intermittently Duty Cycle With Winch Automatic Brake

OEM/ODM Services Customized Logo&Packaging
Quality Certification Samples available to approval the quality
Sample Charge Refund agreement Refunding custcomers samples cost after order
Secure Payment Alibaba Trade Assurance Services 100% protection
Faster Delivery Shipping mass goods within 35 days after payment
After-Sale Service ENJOIN Team will always on your side
