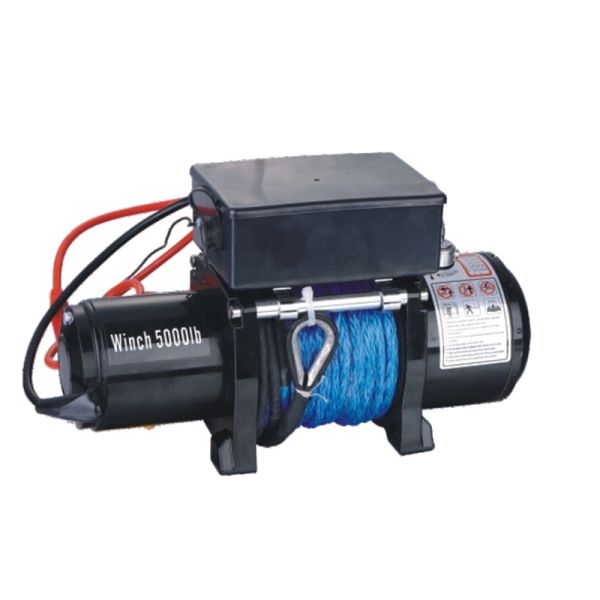

Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Labor Saving Electric Winch Hoist 12V Voltage 3 Stage Planetary Gear Train
Specifications
Brand Name :
YINGER HOIST
Model Number :
5000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
voltage :
12v
Cabel :
Wire rope or Synthetic rope
Motor :
Permanent Magnet
Gear Train :
3-stage planetary gear
Braking action :
Automaitc
Clutch :
Sliding Ring Gear
Capacity :
5000lbs
Description

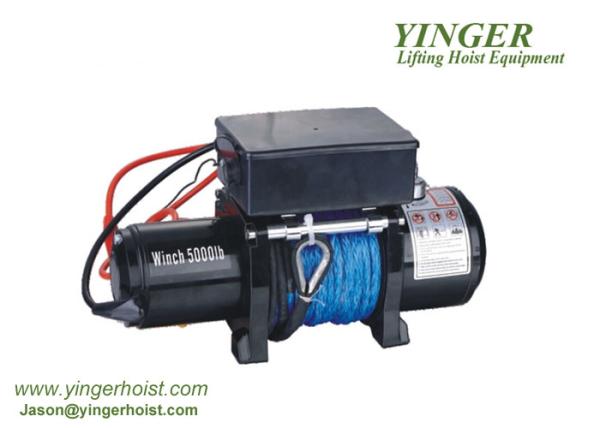

4x4 Off road 12v 5000lbs Electric Winch Hoist With Permanent Magnet Motor

We have a large range of 4x4 electric winch styles ,Speed and power make our tough 4x4 winch series ideal for recovery and super duty applications .It does not matter if you are a professional user or not . You will find the right one for your car here .


5000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull
lbs
0
1000
3000
5000
kg
0
454
1361
2268
Line Speed
ft/min
12.0
10.0
7.5
5.0
m/min
3.7
3.2
2.3
1.5
Motor
Amps
4.5
90
150
230


5000LBS LINE PULL AND CABLE CAPACITY

Layers of cable 1 2 3
Rated line pull per layer lbs 5000 4200 3700
kg 2268 1905 1678
Cumulative cable capacity ft 14.7 29.5 66
m 4.5 9.0 20

Rated Line Pull 5000LBS (2268kgs) single line
Motor 1.2kw/1.6hp (12V) pemanent magnet

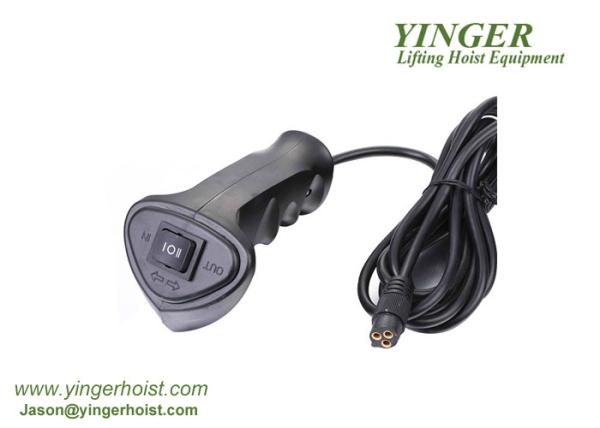

Control Remote switch, 12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear train ratio 218:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Size Φ2.5"×5.5" (Φ63.5×140m)
Cable 9/32" of 66ft diameter (Φ6.4mm×20m)

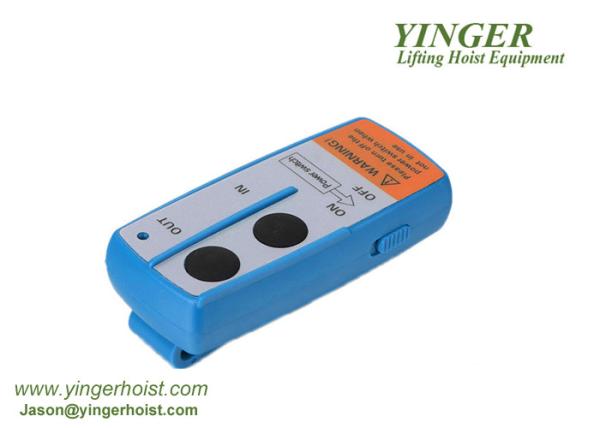

Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
Finish Black powder coat
Overall Dimensions 17.9"×6.1"×8.6"(456mm×156mm×215mm)
Mounting Bolt Pattern 166.4mm×114.3mm
Weight N.W.26kgs G.W.28Kgs
Packing Size 49×19×34.5cm 1PC/CTN
