12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
Specifications
Brand Name :
YINGER HOIST
Model Number :
2000lbs-20000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Power Source :
Electric
voltage :
12v 24v
Application :
Auto
Cabel :
Steel or Synthetic
Motor :
winch motor Series wound
Gear :
winch 3-stage planetar
Brake :
winch automatic brake
Certificate :
CE,SGS
Produce name :
electric winch
Warranty :
0ne year
Service :
OEM/ODM
Rated Line Pull :
3500lbs --17000lbs
Description

12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch

We a professional manufacturer of electric winches for custom off-road vehicles, utility vehicles, ATVs, boats and yachts, electric winch, electric winches etc.We provide a wide range of electric winches from 2000lbs to 16800lbs, hand winches and custom off-road accessories. We sincerely welcome clients at home and abroad to visit and cooperate with us. Our products, electric winch, electric winches are widely exported to Europe, America, Oceania and Middle East, etc, and are well received by auto wholesalers, large supermarkets and off-road vehicle manufacturers.

12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch

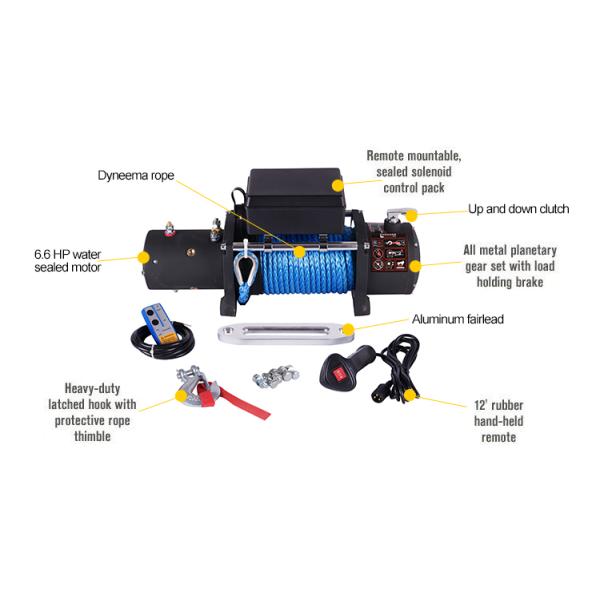

Features:

•Full steel reducer gear

•patent clutch structure

•Free spooling clutch

•Automatic screw cone braking action

•DC 12V or DC 24V Power drive optional

•High current working switch control directly

•ATV Handlebar switch. control

•Control box detchable fixing

•Control box separate fixing

•Remote control through control box and swith

OEM/ODM Services Customized Logo&Packaging
Quality Certification Samples available to approval the quality
Sample Charge Refund agreement Refunding custcomers samples cost after order
Secure Payment Alibaba Trade Assurance Services 100% protection
Faster Delivery Shipping mass goods within 35 days after payment
After-Sale Service ENJOIN Team will always on your side
SPECIFICATIONS FOR 12V 13000-20000LBS ELECTRIC WINCH
Rated Line Pull
13000LB
(5900kg)
single-line
13500LB
(6124kg)
single-line
15000LB
(6804kg) single-line
17000LB
(7711kg) single-line
20000LB
(9072kg) single-line
EXW Price for Sample
$224.00
$235.00
$288.00
$292.00
$537.00
Motor
12V, Permanent Magnet Motor
Gear Train
3-stage planetary
Gear Reduction Ratio
265:1
216:1
364:1
265:1
Clutch
Up and down 90°
Cable
φ9.5mm×27m
φ11mm×28m
Drum Size
φ64mm×224mm
φ64mm×282mm
φ89mm×224mm
Overall Dimensions(L×W×H)
546×160×222mm
574×199×185mm
567×215×246mm
Gross Weight
89lbs(40kg)
95lbs(43kg)
130lbs(59kg)
132lbs(60kg)
136lbs(62kg)
Duty Cycle
Intermittently
Mounting Bolt Pattern
10”x4.5”(254mm x 114.3mm )
Fairlead
4-way roller fairlead
Remote Control
Included
Note
clutch style, brake system can be chosen, different cost

12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch

12V 24V Electric Winch 2000lbs - 20000lbs Rated Line Pull Patent Clutch Structure Winch
