Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Waterproof Electric Winch Hoist 4 Way Roller Fairlead IP67 Degree Sealed
Specifications
Brand Name :
YINGER HOIST
Model Number :
12000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
Gear Train :
3-stage planetary gear
Capacity :
12000lbs
Fairlead :
4-way roller fairlead
Usage :
Cable Pulling Machine
sealed winch :
IP67
Description

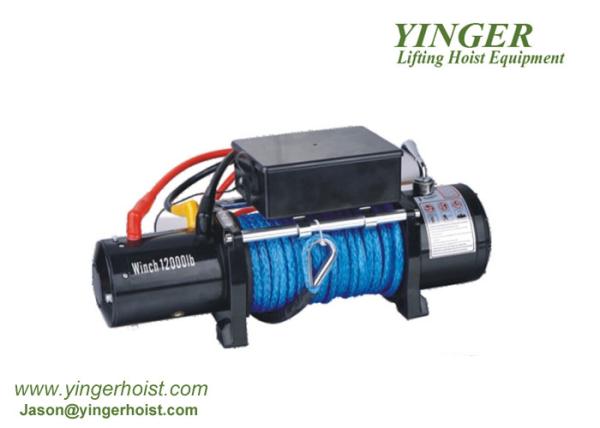

Electric Winch 12000lbs For Off Road Suv Car Jeep Waterproof Winch

1) off road accessories 4x4 winch wireless

2) Steel Rope or synthetic rope(import from Netherland) winch

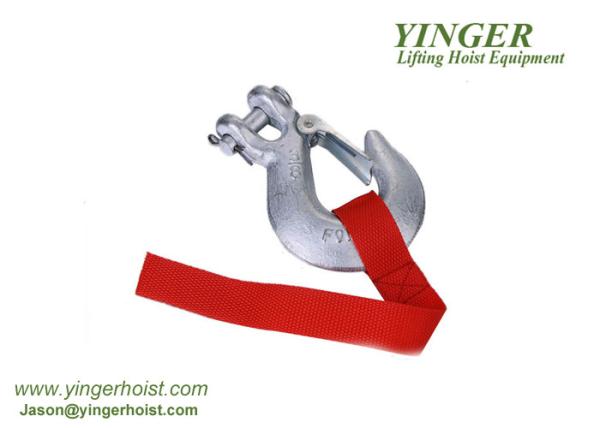

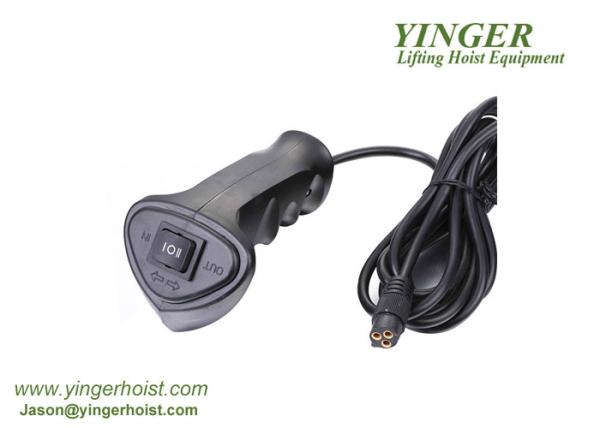

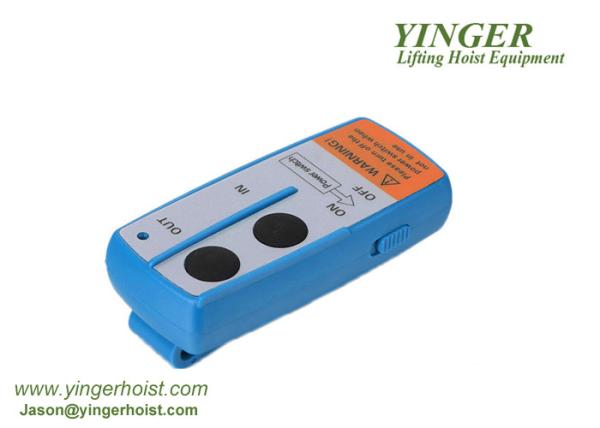

3) Complete kits: Roller fairlead,Control box, Handle remote &Wireless control,installing screws,Hook,gloves

4) CE cetificate and one year warranty

5) Heavy Duty

Line speed and motor current (first layer)
Line pull Lbs 0 4000 6000 8000 10000 12000
Kgs 0 1814 2722 3629 4536 5443
Line speed FPM 12V 22 12.5 9.8 7.6 6.9 5.6
24V 32.8 30 18 13.1 10.5 8.9
MPM 12V 6.8 3.8 3.0 2.3 2.1 1.7
24V 10 7 5.5 4 3.2 2.7
Motor current Amps 12V 80 170 210 250 310 360
24V 45 70 95 130 185 240

Line pull and cable capacity
Layer of cable 1 2 3 4
Rated line pull per layer Lbs 12000 9900 8300 7000
Kgs 5443 4490 3765 3175
Cable capacity per layer Ft 17.6 37 63 85
M 6.0 13 22 26
Specifications
Rated line pull: 12000 Lbs (5443kgs) single line.
Motor: Series wound 6.0 hp /4.4kw 12V DC, 8.1 hp
Gear Train: 3 stage planetary
Gear ratio: 265: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Battery: Recommended 650 CCA minimum for winching
Battery: 25mm2,72"(1.83m)
Fairlead: 4-way Roller fairlead
Wire rope: 3/8"×85'( 9.5mm ×26m)
Drum size: 2.5"×8.9"( 64mm×226mm)
Dimensions: 21.6"×6.3"×8.6"( 548mm×160mm×218mm)
Bolt pattern: 254×114.3mm
N.W: 93 lbs (42kgs)
