Specifications
Brand Name :
YINGER HOIST
Model Number :
9000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
Cabel :
Wire rope or Synthetic rope
Gear Train :
3-stage planetary gear
Capacity :
9000lbs
Application :
Off-road/Jeep/SUV
Fairlead :
4-way roller fairlead
Description

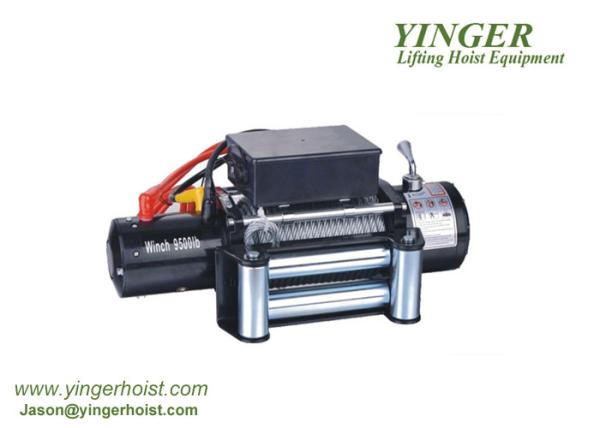

4WD 9000lbs 9500lbs Anchor Electric Winch Trawl Winch Truck Winch Hoist

Standard Configuration of 12v electric winch/windlass
1. Control box of electric winch

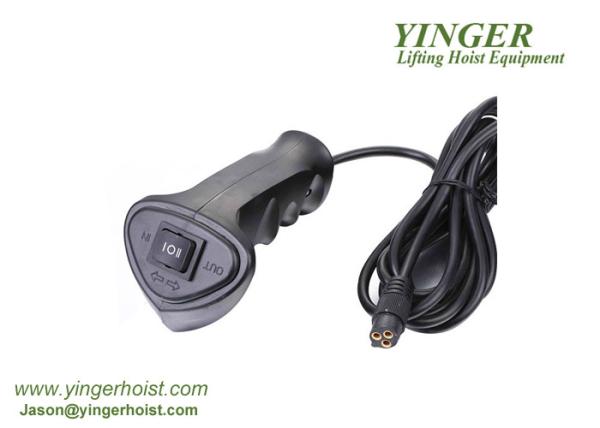

2. Wired remote switch: with 1.83m cable
3. Roller fairlead
4. The series wound motor of 9500lb off-road vehicle winch is fully sealed.
Therefore, the motor has good water resistance
5. Clutch:turn 180°

6. Certifications of electric winch:CE certification

Roller Fairlead Mini Hoist Winch , Light Duty Electric Winch Good Water Resistance Motor

Rated Rope tension 9500LBS Voltage DC 12V
Color CUSTOMIZED Application Off-road winch
Motor

5.5hp/4kw 12V,

series wound motor

 Certification CE
Cable

Φ3/8“×92”

( Φ9.5mm×28m)

 Braking Action Automatic
Item Name Top selling winch Drum Size (Dia.×L)

Φ2.51"×8.82"

(Φ64mm×224mm)
Gear Train 3-stage planetary gear Fairlead 4-way roller fairlead
Model Number V/P9.5 Packing Size 570×330×250mm, 1PC/Box
Clutch turn 180° Port TianJin/QingDao

Line Pull And Rope Capacity In Layer
Layer
Rated Line Pull(lbs./kgs)
Total Rope On Drum(ft/m)
1
9500(4500)
16.2(5.0)
2
7700(3340)
39.0(12.0)
3
6500(2940)
68.0(21.0)
4
5700(2940)
68.1(21.0)

Pull,Speed,Amperes,Volts(First Layer)
Line Pull(lbs./kg)
Line Speed FPM(m/min)
Motor(Amps)
0
24.6ft(7.8m)
80
4000(1814)
10.6ft(3.25m)
240
6000(1360)
8.5ft(2.6m)
280
9500(1814)
6.4ft(2.4m)
330
