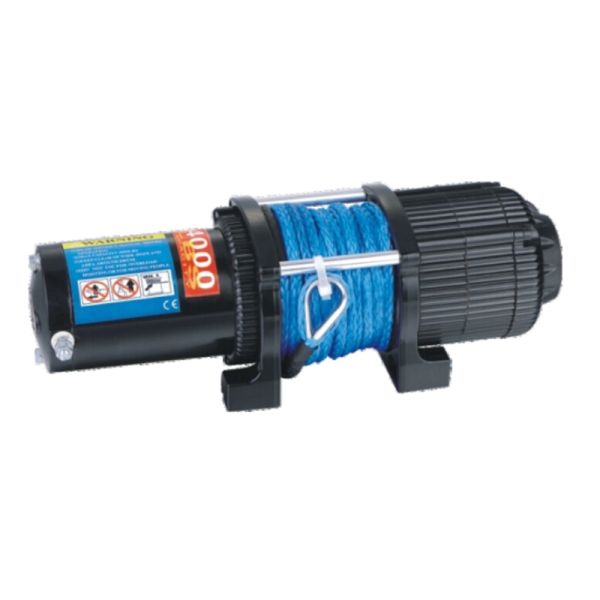

Synthetic Rope Type Electric Cable Winch Multi Position Installed For Cable Pulling Machine
Synthetic Rope Type Electric Cable Winch Multi Position Installed For Cable Pulling Machine
Synthetic Rope Type Electric Cable Winch Multi Position Installed For Cable Pulling Machine
Synthetic Rope Type Electric Cable Winch Multi Position Installed For Cable Pulling Machine
Specifications
Brand Name :
YINGER HOIST
Model Number :
4000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
voltage :
12v 24v
Cabel :
Wire rope or Synthetic
Motor :
Permanent Magnet
Gear Train :
2-stage planetary gear
Usage :
Cable Pulling Machine
Description

Dc 12v Electric Motor 4000lbs Atv Utv Electric Winch Hoist With Synthetic Rope

* It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.

* Winch traction is valued by pound which can be converted to ton or kilogram. Do not exceed the rated traction.

*The more cycles of winch wire rope on the reel, the less pull the outer cycle to bear.

*The best advantage is that it can be normally used in condition of vehicle switch off while others can not.

* Easy and multi-position installed, fast movable.

*High density & high strength wire rope, durable and firm.

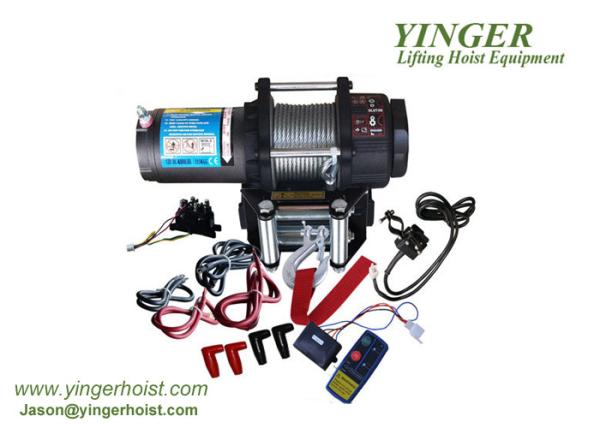

The standard configuration includes a wired remote switch and a control box.

Rated Line Pull 4000lb (1814kg), single line
Motor Permanent magnet motor 0.9kw/1.24hp(12V)
Gear Reduction Ratio 128.2:1
Gear Train 3-stage planetary gear
Free Spool Clutch Cam operated switch
Cable( Dia.×L) Φ1/4"×44.3"(Φ6.5mm×13.5m)
Drum Size (Dia.×L) Φ1.77"×3.19"(Φ45mm×81mm)
Overall Dimensions (L×W×H) 13.9"×4.6"×4.92"(353mm×118mm×125mm)
Packing Size 41.5×28×18cm, 1PCS/CTN
Weight N.W/G.W:13kg/14kg

Line Pull, Line Speed and Motor Current (First Layer), 12V

Line Pull lbs 0 1000 2000 3000 4000
kgs 0 454 907 1360 1815
Line Speed FPM 19.3 15 11 7.3 4.3
MPM 5.9 4.6 3.4 2.2 1.3
Amp draw Amps 28 85 145 220 290

Line Pull and Cable Capacity

Layers of wire rope 1 2 3 4
Rated line pull per layer lbs 4000 3000 2000 1000
kg 1815 1360 907 454
