ATV UTV 1500lb Small Electric Winch , Electric Cable Hoist Winch Gear Reduction Ratio 153 / 1
ATV UTV 1500lb Small Electric Winch , Electric Cable Hoist Winch Gear Reduction Ratio 153 / 1
ATV UTV 1500lb Small Electric Winch , Electric Cable Hoist Winch Gear Reduction Ratio 153 / 1
ATV UTV 1500lb Small Electric Winch , Electric Cable Hoist Winch Gear Reduction Ratio 153 / 1
Specifications
Brand Name :
YINGER HOIST
Model Number :
1500lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
voltage :
12v 24v
Cabel :
Wire rope or Synthetic
Application :
ATV/UTV
Description

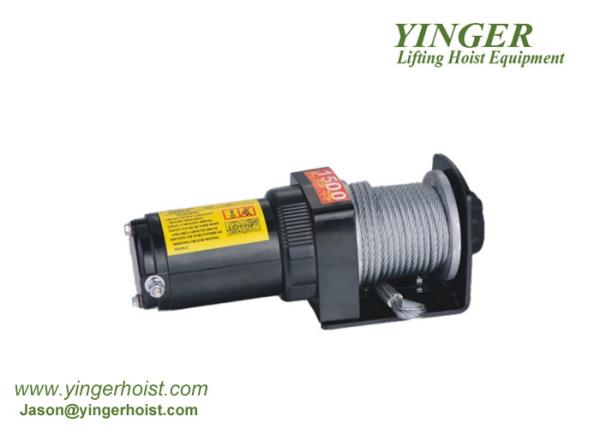

ATV UTV Mini 1500lb Electric Winch Hoist With Electric Motor 12v 500w

Electric Winch(DC V12) is the most common winch, driven by vehicle's own power system. It works in such a way that converting automobile engines power into electricity power to drive the motors and drag noose. It enlarges the output power by the inside planetary reducer to achieve deceleration & torsion enhancement and pull cargo.

Rated Rope tension 1500lb (680kg), single line
Motor 0.52KW/0.69HP12V, permanent magnet motor
Gear Reduction Ratio 153:1
Rope size( Dia.×L) Φ4mm×15m(Φ5/32''×49')
Drum Size (Dia.×L) Φ30mm×72mm(Φ1.18''×2.8'')
Overall Dimensions (L×W×H) 285mm×105mm×105mm(11.2''x4.1''x4.1'')
Mounting Bolt(Dia.×L) Φ8.5mm×80mm(Φ3/10''×3'')
Packing Size 33.5×16×37cm, 2PCS/CTN
Weight N.W/G.W: 11kg/12kg

Line Pull lb NO LOAD 1000 2000 3000
kg 453 907 1360
Line Speed FT/MIN 5.28 4.6 3.8 2.97
M/MIN 1.6 1.4 1.15 0.9
Motor Amps 12 25 40 68

Layers of wire rope 1 2 3 4 5
Rated line pull per layer lb 3000 2422 2090 1805 1444
kg 1360 1098 948 818 655
Length of wire rope wound on drum ft 7.26 15.8 26 37 50
m 2.2 4.8 7.9 11.4 15

OEM/ODM Services Customized Logo&Packaging
Quality Certification Samples available to approval the quality
Sample Charge Refund agreement Refunding custcomers samples cost after order
Secure Payment Alibaba Trade Assurance Services 100% protection
Faster Delivery Shipping mass goods within 35 days after payment
After-Sale Service ENJOIN Team will always on your side

ATV UTV 1500lb Small Electric Winch , Electric Cable Hoist Winch Gear Reduction Ratio 153 / 1
