12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
12V 24V Electric Winch Hoist Wire Rope Or Synthetic Cabel High Durability
Specifications
Brand Name :
YINGER HOIST
Model Number :
4000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
voltage :
12v 24v
Cabel :
Wire rope or Synthetic
Brake :
winch automatic brake
Motor :
Permanent Magnet
Weight :
G.W: 15kg
Description

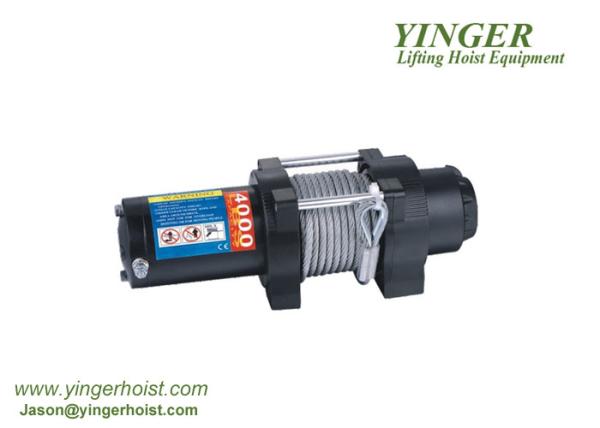

12v 24v 4000LBS Electric Pulling Machine Forestry Winch Electric Winch Hoist

The 4000lb off-road vehicle winch is one of the main products of our company. It is designed with 3.7hp/2.8kw 12V permanent magnet motor. The smart shape and the lower power make it suitable for the entry-level off-road vehicles. The whole body of the product is dull polish. Matched with the silvery wire rope, the product has a particularly beautiful appearance. Through years’ of improvement on technology, the performance of the product is quite stable.

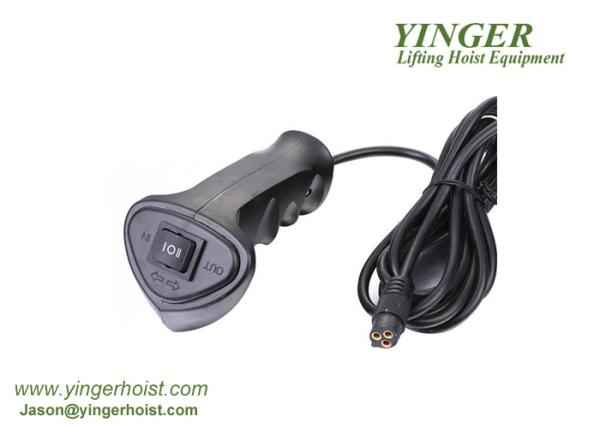

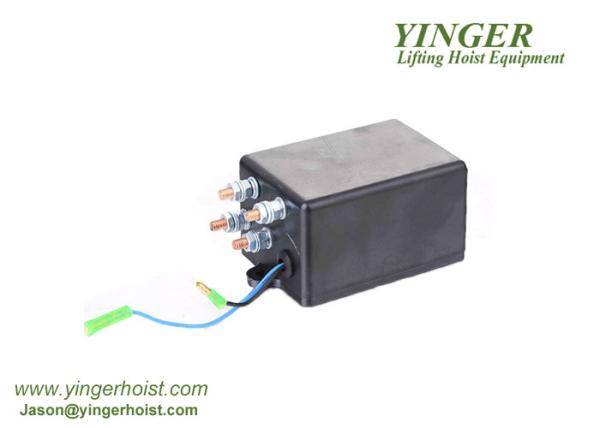

The standard configuration includes a wired remote switch and a control box.

Detail Information
Rated Line Pull: 4000LB(1818kg) single-line
Motor: 3.7hp/2.8kw 12V, Permanent Magnet Motor
Gear Train: 2-stage planetary
Gear Reduction Ratio: 271:1
Clutch: rotate 90°
Cable φ6.35mm×15m
Drum Size: φ50mm×115mm
Overall Dimensions: (L×W×H)(350×115×120mm)
Gross Weight: 15kg
Duty Cycle: Intermittently
Fairlead: 4-way roller fairlead
Package: 1pc/box,(420×320×150mm)
Mounting Bolt Pattern: 165mm
Remote Control: Included
