Specifications
Brand Name :
YINGER HOIST
Model Number :
8000lbs
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Power Source :
Electric
Cabel :
Wire rope or Synthetic rope
Gear Train :
3-stage planetary gear
Capacity :
8000lbs
Description

Heavy Duty Electric Winch , Electric Hoist Lifting Winch Full Steel Gears

1. High torque force motor, delivers plenty of power.
2. Efficient power efficacy, low amp draws.
3. Smooth winching, very low noises.
4. 2 ways brake, 100% immediate stop to load hold.
5. Full steel gears, toughened gears parts for toughest pulling demand.
6. Sealed winch, well working in water.
7. 100% testing on every winch pulling capacity and function.
8. Warranty parts free supply.

8000 LBS FEATURES AND SPECIFICATIONS

Rated Line Pull 8000LBS (3629kgs) single line
Motor 4.13hp/3.0kw, Series Wound

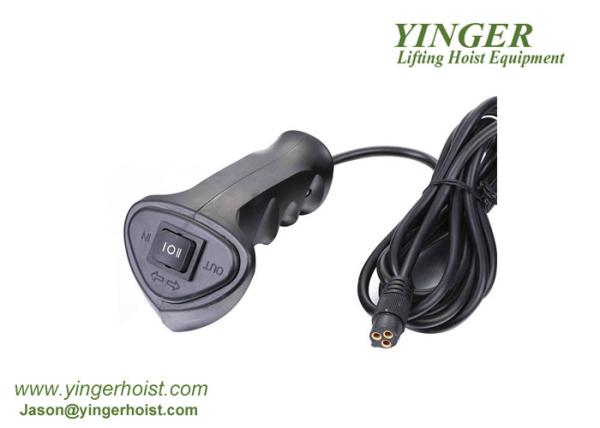

Control Remote switch, 12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear train ratio 218:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Size Φ2.6"×8.8" (Φ64×224m)
Cable 94ft of 5/16" diameter (28m of 8.1mm dianeter)

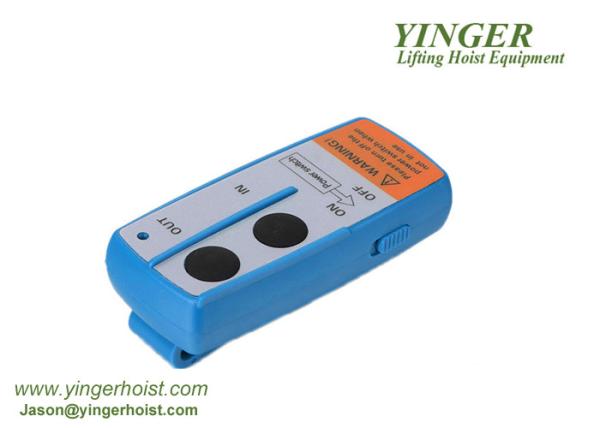

Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
Finish Black powder coat
Overall Dimensions 21.1"×6.3"×8.6"(537mm×160mm×218mm)
Mounting Bolt Pattern 254mm×114.3mm
Weight N.W.34kg G.W.38Kg
Packing Size 57×19×34.5cm 1PC/CTN


8000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull
lbs
 0
2000
4000
6000
8000
kg
 0
907
1814
2721
3628
Line Speed
ft/min
22.5
11.48
8.53
8.53
5
m/min
6.85
3.5
2.6
2.6
1.4
Motor
Amps
65
90
120
120
210


8000LBS LINE PULL AND CABLE CAPACITY

Layers of cable 1 2 3 4
Rated line pull per layer lbs 8000 6500 5500 4800
kg 3629 2948 2495 2173
Cumulative cable capacity ft 19.6 42.6 68.9 92
m 6 13 21 28
