Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5257GSSF1
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4585-6855usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
8300,8500×2500×3250(mm)
Chassis :
ZZ1257N464GF1
Engine :
MC07H.33-60
Maximum Speed :
89,110(km/h)
Approaching/Departure Angle :
19/15
Front/Rear Overhang :
1430/2220,1430/2195(mm)
Axle Load :
7000/18000 (two-axle group)
Curb Weight :
13595,13530(Kg)
Rated Loading :
11275(Kg)
Total Mass :
25000(Kg)
Number of tires :
10
tyre size :
315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,11.00R20,315/60R22.5 20PR
Description
25-tons water tank 14m³ water spray spraying tanker sprayer road cleaning truck
25-ton Diesel Sprinkler: Updated Intro​
For road care, this 25-ton diesel sprinkler works well. Handles dust and cooling with solid performance.
​
Key Specs​
Total weight 25 tons, load 13595Kg/13530Kg. Tank: 14.2m³ total, 13.53m³ usable. Size 6250×2250×1450mm, fits roads.​
Chassis: 4300+1350mm (rear overhang 2220mm) or 4275+1400mm (rear overhang 2195mm) wheelbase, with leaf spring suspension. Engines: MC07.27-60, MC07.31-60, MC07.34-60.
​
Devices & Uses​
Has pump, tank, spray gun. Sprinkles roads to reduce dust and cool—good for streets, highways, sites.
​
Optional Parts
​Speed limiter (89km/h)​

Arrow lights (tank rear), fog devices (tank rear/platform end)​

Rear platform, mid/rear wash, rear sprinkler​

Cab parts (side window, front, fenders) via chassis​

Rear pipe ports, side air tank position, front smart gun, mirrors​

No cab top antenna if needed​

Safety Features​
Side/rear guards: Q235 steel, bolted. Rear guard: 80×120mm, 490mm off ground.​
ABS (WABCO 4460046300) or optional EBS (WABCO EBS3) for safe braking.​
Strong, capable, and safe—great for road maintenance. Contact us for details.
Parameters:
Item ZBJ5257GSSF1
Energy type Diesel
Dimension(L x W x H) 8300,8500×2500×3250(mm)
Chassis ZZ1257N464GF1
Engine MC07H.33-60
Curb Weight 11275kg
Rated Loading 13595,13530kg
Total Mass 25000kg
Axle Load 7000/18000 (two-axle group)
Front/Rear Overhang 1430/2220,1430/2195(mm)

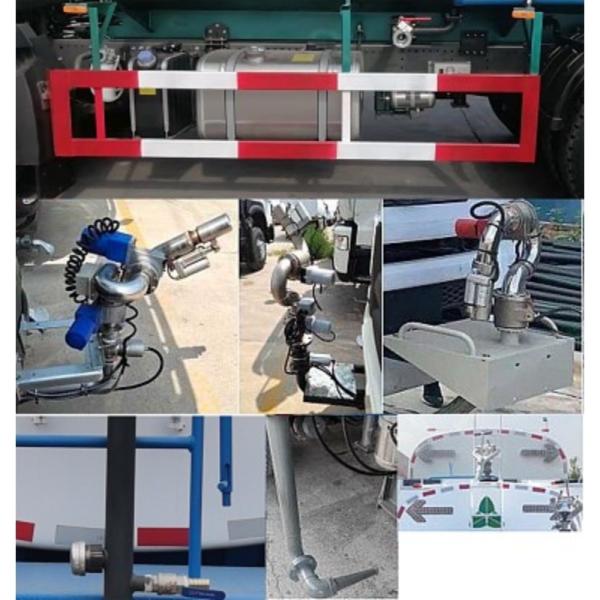

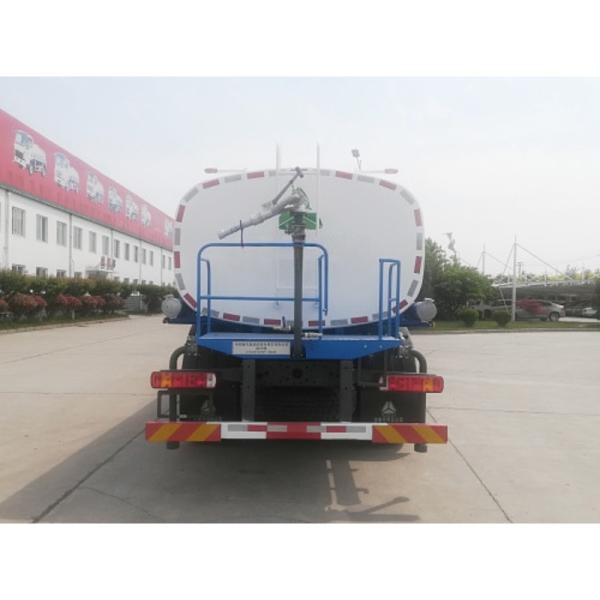

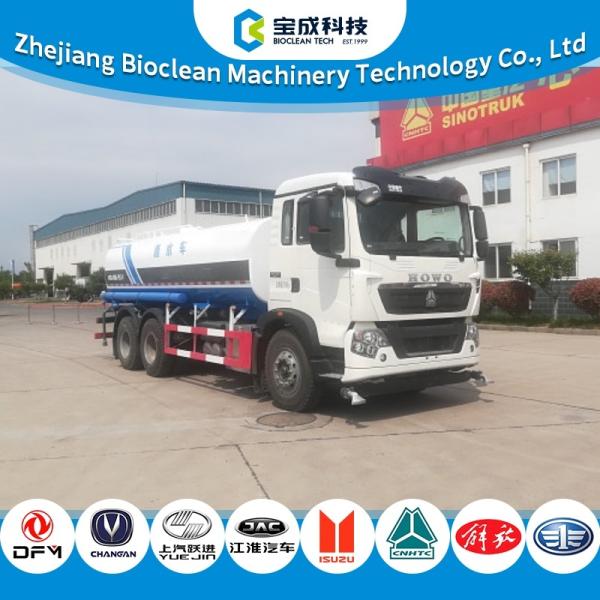

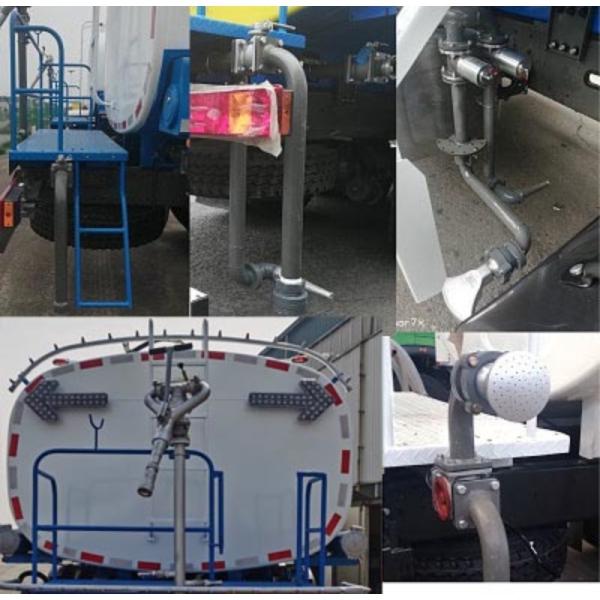

Actual photos
