Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5183TSDBEV1
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4585-7855usd
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
8560,7980×2510×2800,2850,2900,2950,3000(mm)
Chassis :
BJ1186EVJA5
Engine :
TZ375XSSF-SZF611
Maximum Speed :
90(km/h)
Approaching/Departure Angle :
15/12(°)
Front/Rear Overhang :
1270/2210(mm)
Axle Load :
6500/11500
Curb Weight :
9150,9085,9215(Kg)
Rated Loading :
8720,8655(Kg)
Total Mass :
18000(Kg)
Number of tires :
6
tyre size :
10.00R20 18PR
Description

Pure clectric 10m³ water tank water spray spraying tanker sprayer truck

Pure Electric 18 T Disinfection Sprayer (18 000 kg GVW, 9 150 kg Payload)

Tank & Medium

Total/Effective: 11.14 m³ / 10.60 m³ (disinfectant, ρ = 850 kg/m³)

Size (L × long × short): 5 000 × 2 230 × 1 420 mm

Drive & Energy

LiFePO₄ battery pack (Wuhan Fudi Battery Co.)

Motor: 105 kW continuous / 175 kW peak

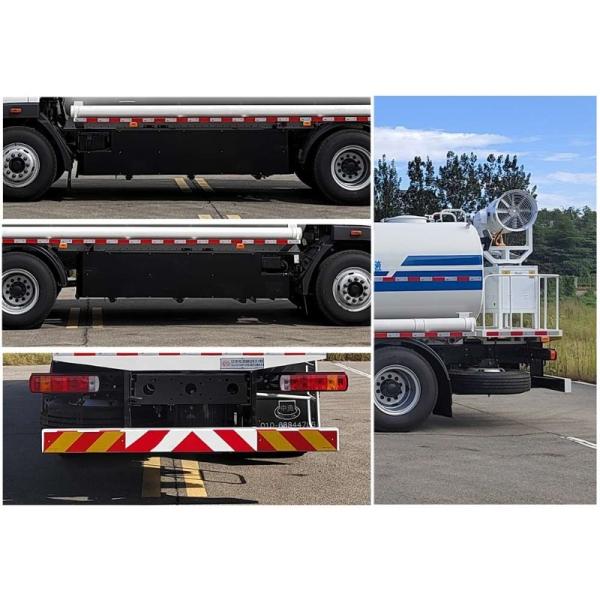

Protection

Side & rear guards: Q235 steel, bolt‑on

Rear guard section: 80 × 160 mm; 440 mm ground clearance

Dimensions & Payload Variants

With rear mist cannon (curb weight 8 720 kg): 3‑seat/9 085 kg or 2‑seat/9 150 kg payload

Without mist cannon (curb weight 8 655 kg): 3‑seat/9 150 kg or 2‑seat/9 215 kg payload

Length/Front overhang/Wheelbase/Rear overhang (no front gun): 7 980 / 0 / 4 500 / 2 210 mm

With front electronic gun (+580 mm overhang): 8 560 / 580 / 4 500 / 2 210 / 1 270 mm

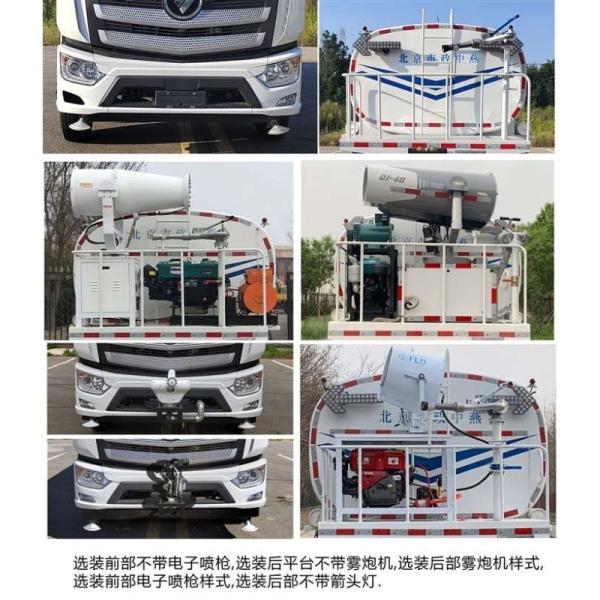

Options
ETC unit, various mist‑cannon and spray‑gun styles, rear platform, arrow‑lamp

Ideal for zero‑emission street, plaza and community disinfection.

Parameters:

Item ZBJ5183TSDBEV1
Energy type Pure clectric
Dimension(L x W x H) 8560,7980×2510×2800,2850,2900,2950,3000(mm)
Chassis BJ1186EVJA5
Engine TZ375XSSF-SZF611
Curb Weight 9150,9085,9215(Kg)
Rated Loading 8720,8655(Kg)
Total Mass 18000(Kg)
Front/Rear Overhang 1270/2210(mm)
Tyre size 10.00R20 18PR
