11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5180GSSC
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3565-7685
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
7860×2530×2900,3070(mm)
Chassis :
DFH1180EX8
Engine :
DDi50E190-60
Maximum Speed :
89(km/h)
Approaching/Departure Angle :
15/14(°)
Front/Rear Overhang :
1400/1960,1430/1930,1400/1460,1430/1430(mm)
Axle Load :
6500/11500
Curb Weight :
10480(Kg)
Rated Loading :
7325(Kg)
Total Mass :
18000(Kg)
Number of tires :
6
tyre size :
275/80R22.5 18PR,10.00R20 18PR
Description

11m³ water tank dongfeng water tank water spray spraying tanker sprayer truck

Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability.
Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time.


Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time.

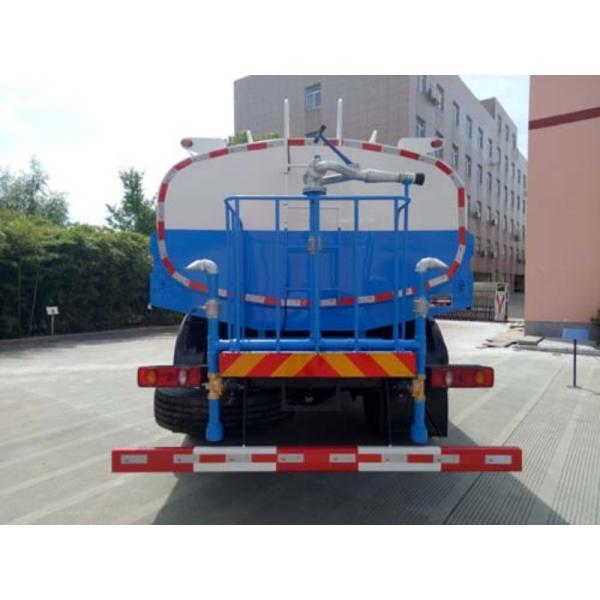

Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle. When the two rear sprinkling nozzles are turned on at the same time, the sprinkling width is not less than 14m.

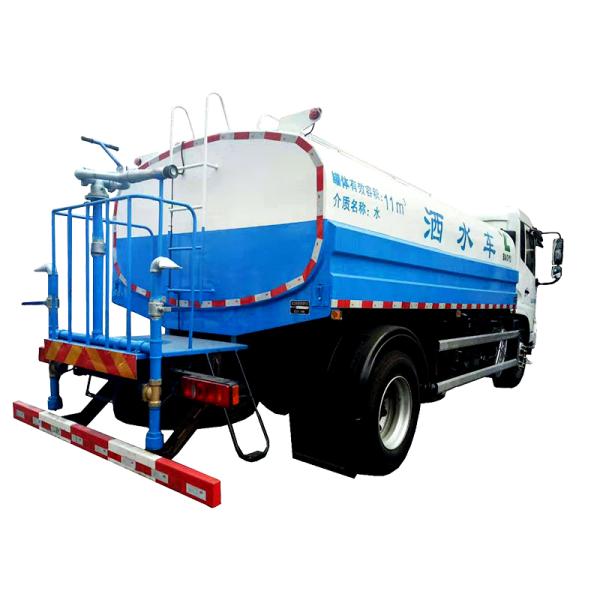

Water Cannon: The water cannon is an aluminum-made long-range water cannon, installed on the right side of the rear workbench. The water cannon can rotate 0° to 360°, and the cannon body can be operated to pitch up and down.

Parameters:

Item ZBJ5180GSSC
Energy type Diesel
Dimension(L x W x H) 7860×2530×2900,3070(mm)
Chassis DFH1180EX8
Engine DDi50E190-60
Curb Weight 10480(Kg)
Rated Loading 7325(Kg)
Total Mass 18000(Kg)
Front/Rear Overhang 1400/1960,1430/1930,1400/1460,1430/1430(mm)
Tyre size 275/80R22.5 18PR,10.00R20 18PR

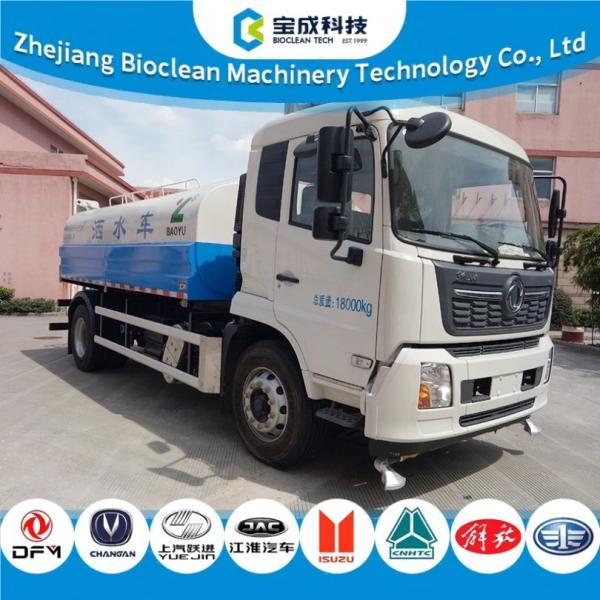

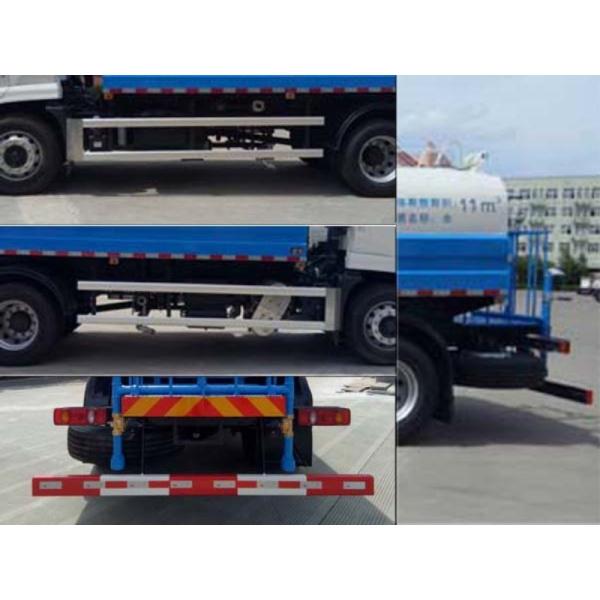

Actual photos:

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
