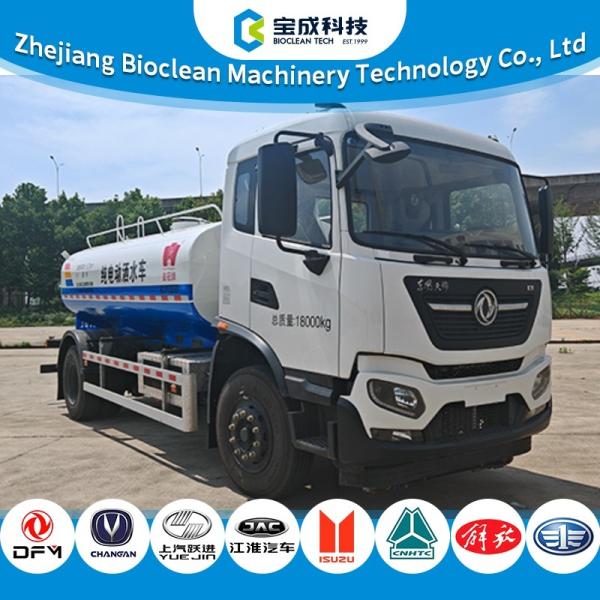

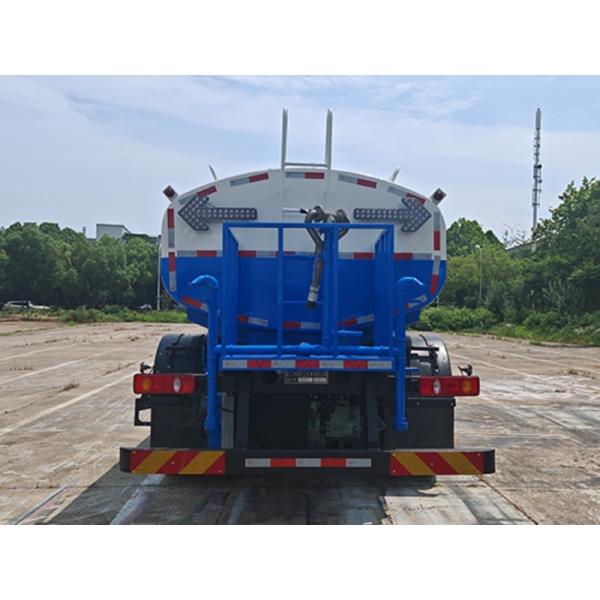

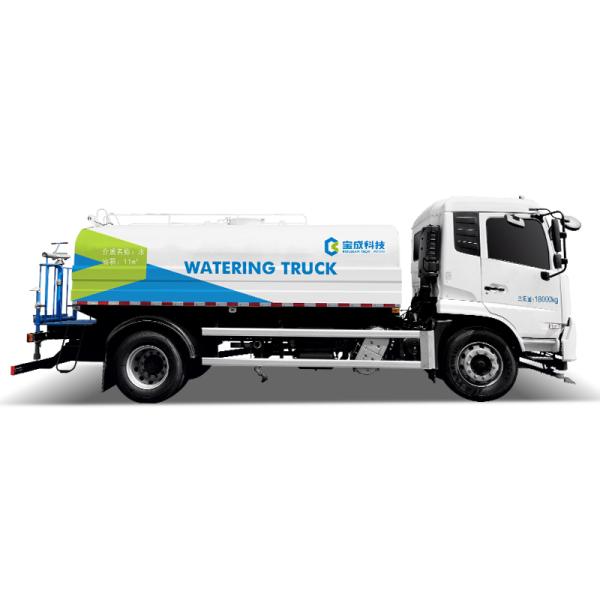

18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5182GSSEV
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3385-7875USD
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
8070×2535×3030(mm)
Chassis :
DFH1180EEV1
Engine :
TZ365XS-HSM1601
Maximum Speed :
89(km/h)
Approaching/Departure Angle :
15/13(°)
Front/Rear Overhang :
1400/2170(mm)
Axle Load :
6500/11500
Curb Weight :
9340,9275(Kg)
Rated Loading :
8530(Kg)
Total Mass :
18000(Kg)
Number of tires :
6
tyre size :
10.00R20 18PR,295/80R22.5 18PR
Description

18000KG pure clectric 10m³ water tank water spray spraying tanker sprayer truck

Pure Electric 18 T Sprinkler Truck (18 t GVW, 10 570 kg Payload)

Chassis & Dimensions

Wheelbase & Length: 3 950 mm; 7 765 mm (no front cannon) | 8 285 mm (with cannon, +520 mm)

GVW: 18 000 kg | Payload: 10 570 kg (10 505 kg net)

Water Tank

Total/Effective: 11.03 m³ / 10.50 m³

Size: 4 500 × 2 400 × 1 450 mm

Media: Water (ρ = 1 000 kg/m³)

Safety & Protection

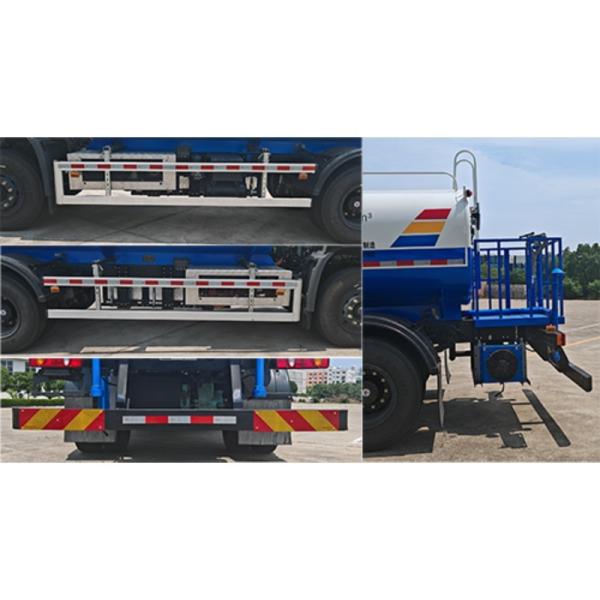

Side & Rear Guards: Q235B steel, bolt‑on (rear section 160 × 60 mm, 480 mm ground clearance)

Electric Drive & Energy Storage

Battery: LiFePO₄ modules

Motor: Permanent‑magnet synchronous TZ365XS‑HSM1601, 95 kW continuous / 160 kW peak

Standard & Optional Equipment

Satellite arrow‑lamp at rear (operational mode only)

Optional: ETC unit, mist‑cannon assemblies, rear pump–motor, tank stiffeners, tool box, water‑cannon brackets

Item ZBJ5182GSSEV
Energy type Pure clectric
Dimension(L x W x H) 8070×2535×3030(mm)
Chassis DFH1180EEV1
Engine TZ365XS-HSM1601
Curb Weight 9340,9275(Kg)
Rated Loading 8530(Kg)
Total Mass 18000(Kg)
Front/Rear Overhang 1400/2170(mm)
Tyre size 10.00R20 18PR,295/80R22.5 18PR
