Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5120GSS6SW
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4685-7865
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
7385,7410×2250×2730(mm)
Chassis :
STQ1125L04Y2N6
Engine :
YCS04200-68
Maximum Speed :
80(km/h)
Approaching/Departure Angle :
23/11(°)
Front/Rear Overhang :
1275/2310,1300/2310(mm)
Axle Load :
4850/7145
Curb Weight :
6500,6565(Kg)
Rated Loading :
5300(Kg)
Total Mass :
11995(Kg)
Number of tires :
6
tyre size :
8.25R20 16PR,245/70R19.5 16PR
Description

12-ton water tank 6800L water spray spraying tanker sprayer road cleaning truck

12-ton Diesel-powered Sprinkler Truck: Brief Export Intro
​
This 12-ton diesel-powered sprinkler truck, with load capacities of 6500Kg and 6565Kg, is ideal for road sprinkling operations.
​
The tank, designed to transport water (density 1000kg/m³), has an overall capacity of 6.8 cubic meters and an effective volume of 6.5 cubic meters. Its external dimensions are 3600×1980×1280mm (length×major axis×minor axis).
​

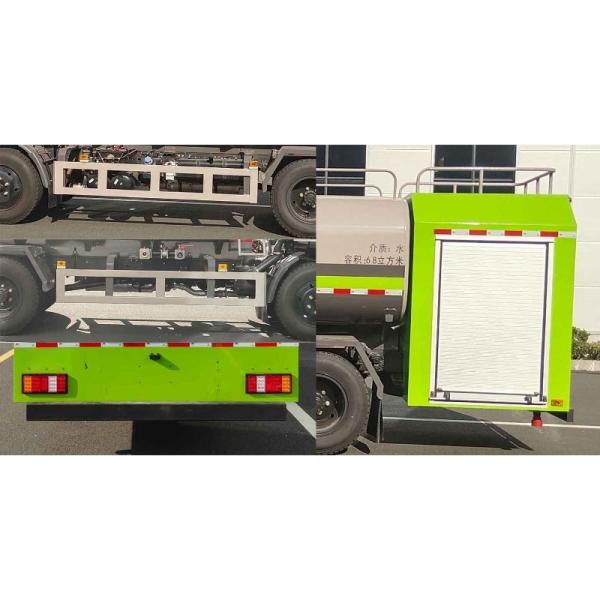

For safety, both side and rear protection devices are made of Q235 material, connected by bolts. The rear protection has a cross-sectional size of 60×120mm (width×height) and a ground clearance of 410mm.
​
It uses a chassis with a 3800mm wheelbase. The ABS system is from Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd., model ABS/ASR-24V-4S/4M.
​

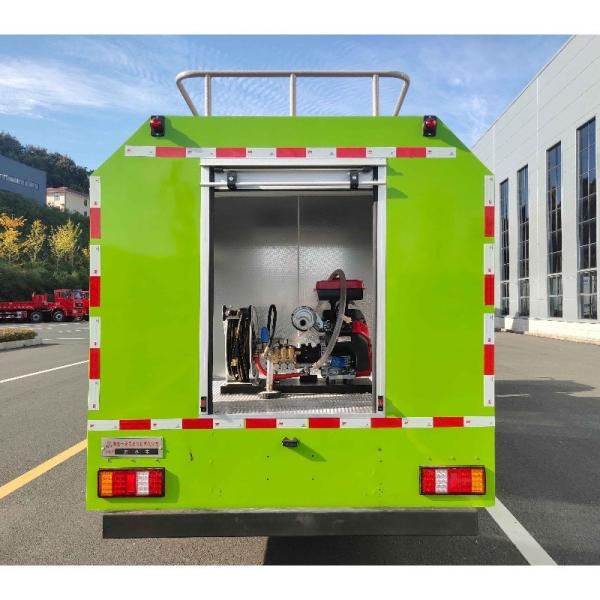

Optional equipment includes a direct-powered ETC on-board device. Equipped with dedicated devices like a tank and water pump, it is mainly used for road sprinkling work.
Parameters:
Item ZBJ5120GSS6SW
Energy type Diesel
Dimension(L x W x H) 7385,7410×2250×2730(mm)
Chassis STQ1125L04Y2N6
Engine YCS04200-68
Curb Weight 6500,6565(Kg)
Rated Loading 5300(Kg)
Total Mass 11995(Kg)
Max.Speed 80(km/h)
tyre size 8.25R20 16PR,245/70R19.5 16PR

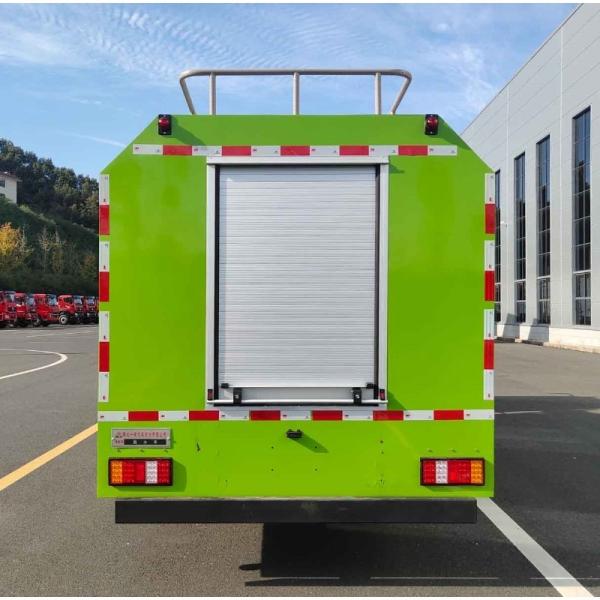

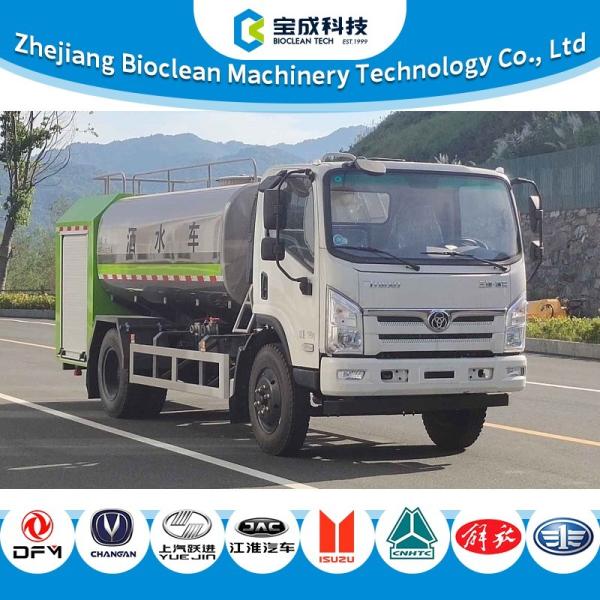

Actual photos:

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler TruckCommercial 12 Ton 6800L Water Tanker Truck Water Sprinkler TruckCommercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck
