12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5120GSSC
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4585-8855usd
Payment Terms :
T/T
Certification :
ZBJ5120GSSC
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
6840×2190×2415(mm)
Chassis :
EQ1125SJ8CDC
Engine :
D4.0NS6B170
Maximum Speed :
105km/h
Approaching/Departure Angle :
15/14(°)
Front/Rear Overhang :
1130/1910(mm)
Axle Load :
4350/7645
Curb Weight :
6750(Kg)
Rated Loading :
5050(Kg)
Total Mass :
11995(Kg)
Number of tires :
6
tyre size :
245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR
Description

12tons 8m³ water tank water spray spraying tanker sprayer truck

Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.
Engine: Adopt a diesel engine of a well-known brand, which has strong power.

Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability.
Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time.
Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time.

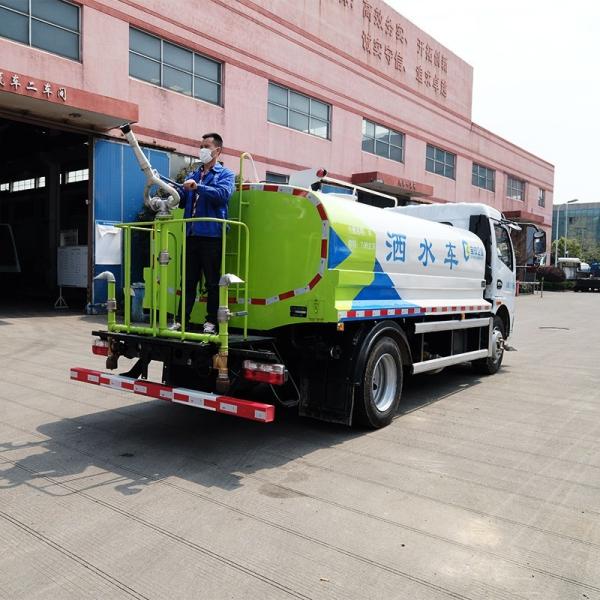

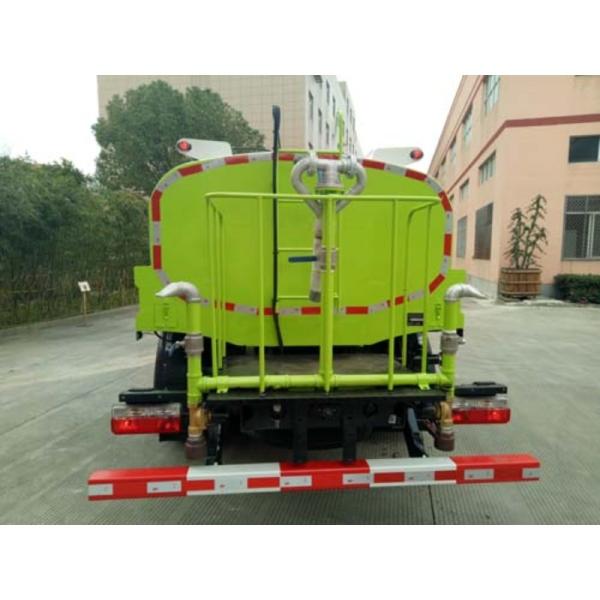

Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle.

Parameters:

Item ZBJ5120GSSC
Energy type Diesel
Dimension(L x W x H) 6840×2190×2415(mm)
Chassis EQ1125SJ8CDC
Engine D4.0NS6B170
Curb Weight 6750(Kg)
Rated Loading 5050(Kg)
Total Mass 11995(Kg)
Front/Rear Overhang 1130/1910(mm)
Tyre size 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR

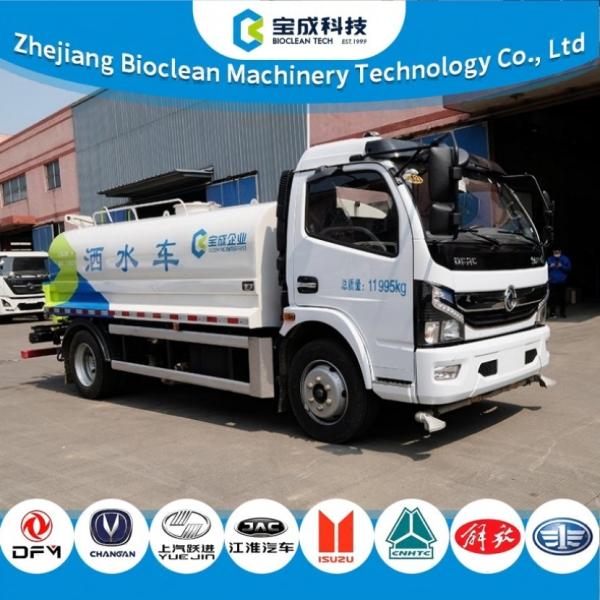

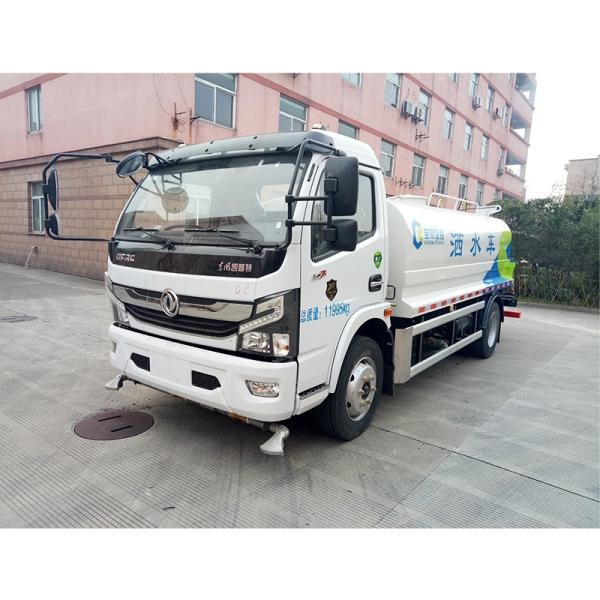

Actual photos:

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power 12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
