18tons 11m³ water tank water spray spraying tanker sprayer truck
18tons 11m³ water tank water spray spraying tanker sprayer truck
18tons 11m³ water tank water spray spraying tanker sprayer truck
18tons 11m³ water tank water spray spraying tanker sprayer truck
18tons 11m³ water tank water spray spraying tanker sprayer truck
18tons 11m³ water tank water spray spraying tanker sprayer truck
18tons 11m³ water tank water spray spraying tanker sprayer truck
18tons 11m³ water tank water spray spraying tanker sprayer truck
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5180GSSGF6
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
7550×2520×3200(mm)
Chassis :
EQ1185LJ9CDE
Engine :
CY4SK761/YCS04200-68/D4.5NS6B220
Maximum Speed :
105km/h
Approaching/Departure Angle :
18°/12°
Front/Rear Overhang :
1260mm/2340mm
Axle Load :
6500mm/11500mm
Curb Weight :
6850kg
Rated Loading :
11020,10955kg
Total Mass :
18000kg
Tank Material :
Carbon Steel or Stainless Steel
Tank Thickness :
4mm/5mm/6mm
Description

18tons 11m³ water tank water spray spraying tanker sprayer truck


Diesel‑Powered 18 T Sprinkler Truck (18 000 kg GVW, 11 020 kg Payload / 10 955 kg Net)


Chassis & Dimensions

Wheelbase: 3 950 mm

GVW: 18 000 kg | Rated Payload: 11 020 kg (10 955 kg net)


Water Tank & Spray System

Total/Effective Capacity: 11.50 m³ / 10.95 m³

Tank Size (L × W × H): 4 200 × 2 470 × 1 630 mm

Special Equipment: road‑spray and landscaping nozzle assemblies

Optional rear platform‑mounted mist cannon and arrow‑indicator lamp

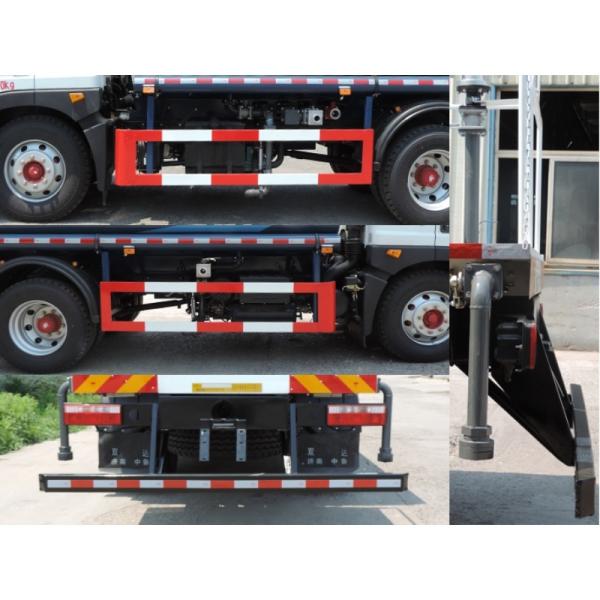

Safety & Protection

Side & Rear Guards: Q235B steel, bolt‑on to chassis

Rear Guard Section: 60 × 120 mm; 465 mm ground clearance


Brake System

ABS & ASR‑24V‑4S/4M


Optional Accessories

Fuel tank, battery box, urea tank, air reservoirs, muffler (left/right mount)

New‑style front grille, headlamps, bumper, mirrors; choice to omit front fog lamps

Ideal for export‑market street cleaning, dust control and urban greening applications.


Parameters:


Item ZBJ5180GSSGF6
Energy type Diesel
Dimension(L x W x H) 7550×2520×3200(mm)
Chassis EQ1185LJ9CDE
Engine CY4SK761/YCS04200-68/D4.5NS6B220
Curb Weight 6850kg
Rated Loading 11020,10955kg
Total Mass 18000kg
Front/Rear Overhang 1260mm/2340mm
Tyre size 295/80R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR
