Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5181GSSSEHBEV
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Supply Ability :
5,000 units per year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Dimension(L x W x H) :
8285,7765×2550×3140(mm)
Chassis :
DFD1180GLEVJ
Engine :
TZ365XS-HSM1601
Maximum Speed :
85(km/h)
Approaching/Departure Angle :
17/11(°)
Front/Rear Overhang :
1250/2565(mm)
Axle Load :
6500/11500
Curb Weight :
10570,10505(Kg)
Rated Loading :
7300(Kg)
Total Mass :
18000(Kg)
Number of tires :
6
tyre size :
10.00R20 18PR
Description

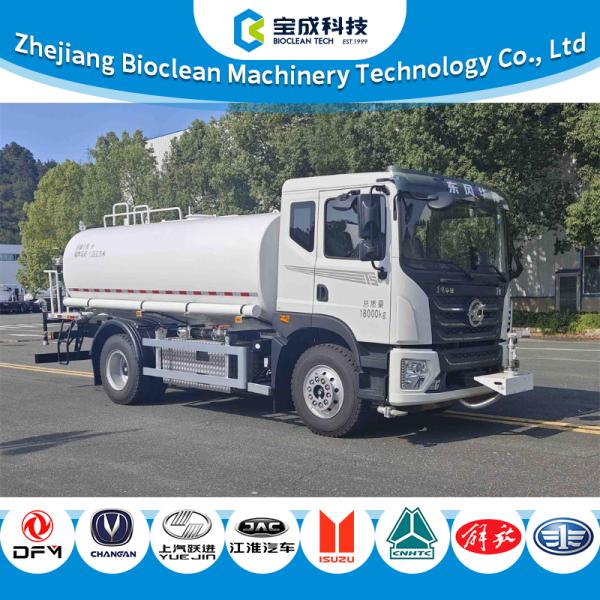

18tons pure clectric 11m³ water tank water spray spraying tanker sprayer truck

Pure Electric 18 T Sprinkler Truck (18 000 kg GVW, 10 570 kg Payload / 10 505 kg Net)

Overall Length & Front Overhang

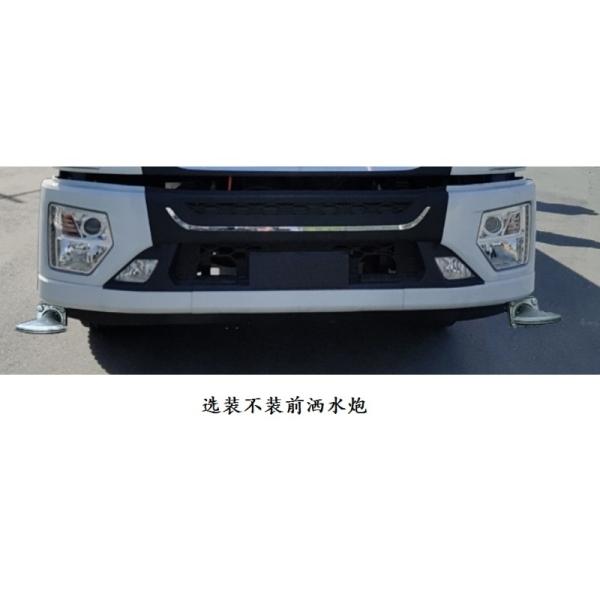

Without front cannon: 7 765 mm / 0 mm extension

With front cannon: 8 285 mm / 520 mm extension

Water Tank

Dimensions (L × long × short): 4 500 × 2 400 × 1 450 mm

Capacity: 11.03 m³ total / 10.50 m³ effective

Media: Water (ρ = 1 000 kg/m³)

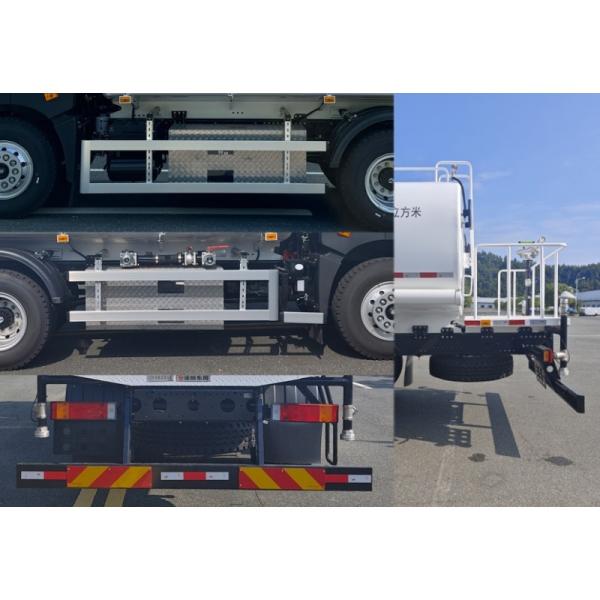

Protection

Side & rear guards: Q235B steel, bolt‑on

Rear guard section: 160 × 60 mm; 480 mm ground clearance

Electric Drive & Energy Storage

Motor: Permanent‑magnet synchronous TZ365XS‑HSM1601, 95 kW continuous / 160 kW peak

Standard & Optional Equipment

Rear arrow‑lamp (operational mode)

Optional: direct‑powered ETC, mist‑cannon units, rear pump‑motor assembly, tank stiffeners, rear tool box, water‑cannon brackets

Ideal for zero‑emission urban landscaping, street cleaning and dust suppression in global markets.

Parameters:

Item ZBJ5181GSSSEHBEV
Energy type Pure clectric
Dimension(L x W x H) 8285,7765×2550×3140(mm)
Chassis DFD1180GLEVJ
Engine TZ365XS-HSM1601
Curb Weight 10570,10505(Kg)
Rated Loading 7300(Kg)
Total Mass 18000(Kg)
Front/Rear Overhang 1250/2565(mm)
Tyre size 10.00R20 18PR
