75-110GHz WR-10 WAVEGUIDE LOAD VN-WGLD-75110-WR10
75-110GHz WR-10 WAVEGUIDE LOAD VN-WGLD-75110-WR10
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-75110-WR10
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-75110-WR10
Operating Frequency ( GHz ) :
75-110
Impedance ( Ohm ) :
50
VSWR :
≤1.15
Interface :
WR10(BJ900)
Description

75-110GHz WR-10 WAVEGUIDE LOAD

  • Reduced system damage risk

  • Reliable termination of unused waveguide ports

  • Broadband operation

  1. Port Termination:
    Connect the flanged input of the WAVEGUIDE LOAD directly to an unused waveguide port, circulator port, or directional coupler port. Ensure the flange type (e.g., UG, CPR, cover, choke) matches the system.

  2. Power Handling Consideration:
    Select a WAVEGUIDE LOAD with average power rating exceeding the maximum expected power. For pulsed systems, verify peak power capability.

  3. Cooling Requirement:

    • Low‑power WAVEGUIDE LOAD → natural air cooling.

    • Medium‑power → forced air cooling (e.g., built‑in fan).

    • High‑power → water‑cooled WAVEGUIDE LOAD with circulating deionized water.

  4. Installation Orientation:
    Some high‑power WAVEGUIDE LOAD must be mounted with the fins vertical to optimize convection. Always follow the datasheet of that specific WAVEGUIDE LOAD.

  5. Verification:
    After installation, use a network analyzer to confirm that the WAVEGUIDE LOAD presents a return loss better than 30 dB (VSWR < 1.15).

VN-WGLD-75110-WR10.pdf

Part Number VN-WGLD-75110-WR10
Operating Frequency ( GHz ) 75-110
Impedance ( Ohm ) 50
VSWR ≤1.15
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR10(BJ900)

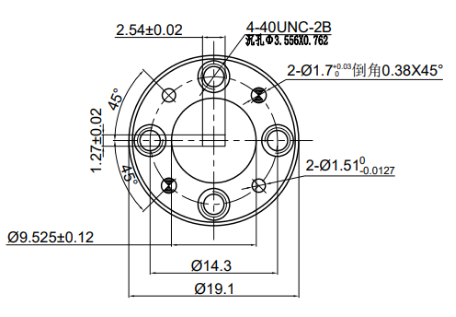

Dimension(mm) As below
Handling Power 0.5 (Watt, max)
ROHS Compliance Yes

75-110GHz WR-10 WAVEGUIDE LOAD VN-WGLD-75110-WR1075-110GHz WR-10 WAVEGUIDE LOAD VN-WGLD-75110-WR1075-110GHz WR-10 WAVEGUIDE LOAD VN-WGLD-75110-WR10
