26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28
26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28
26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28
26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-2640-WR28
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-2640-WR28
Operating Frequency ( GHz ) :
26.5-40
Impedance ( Ohm ) :
50
VSWR :
≤1.03
Interface :
WR28(BJ320)
Description

26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28

  • Low insertion loss (by design, as a terminating load)
  • Low VSWR (Voltage Standing Wave Ratio)
  • Broadband operation

  • Absorption of Microwave Energy:
    A WAVEGUIDE LOAD converts electromagnetic wave energy into heat, preventing standing waves. Any high‑power system requires a WAVEGUIDE LOAD to terminate unused ports.

  • Reduction of Voltage Standing Wave Ratio (VSWR):
    By absorbing nearly all incident power, a WAVEGUIDE LOAD maintains a low VSWR (typically <1.05), ensuring signal source stability and measurement accuracy.

  • Protection of Sensitive Components:
    During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

VN-WGLD-2640-WR28.pdf

Part Number VN-WGLD-2640-WR28
Operating Frequency ( GHz ) 26.5-40
Impedance ( Ohm ) 50
VSWR ≤1.03
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR28(BJ320)

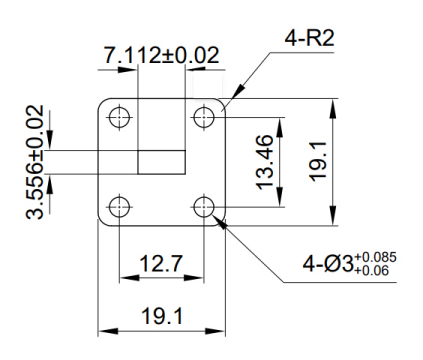

Dimension(mm) As below
Handling Power 2 (Watt, max)
ROHS Compliance Yes

26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR2826.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28
