5.85-8.2GHz WR-137 WAVEGUIDE LOAD
5.85-8.2GHz WR-137 WAVEGUIDE LOAD
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-0508-WR137
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-0508-WR137
Operating Frequency ( GHz ) :
5.85-8.2
Impedance ( Ohm ) :
50
VSWR :
≤1.02
Interface :
WR137(BJ70)
Description

5.85-8.2GHz WR-137 WAVEGUIDE LOAD

  • Low VSWR (Voltage Standing Wave Ratio)
  • High power handling capability
  • Broadband operation

A WAVEGUIDE LOAD is a passive, non-radiating termination device used in waveguide transmission systems. Its primary electrical characteristic is to present a matched impedance (typically 50 ohms equivalent or the waveguide’s characteristic impedance) to the source, thereby absorbing incident microwave energy with minimal reflection.

  • Absorption of Microwave Energy:
    A WAVEGUIDE LOAD converts electromagnetic wave energy into heat, preventing standing waves. Any high‑power system requires a WAVEGUIDE LOAD to terminate unused ports.

  • Reduction of Voltage Standing Wave Ratio (VSWR):
    By absorbing nearly all incident power, a WAVEGUIDE LOAD maintains a low VSWR (typically <1.05), ensuring signal source stability and measurement accuracy.

  • Protection of Sensitive Components:
    During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

VN-WGLD-0508-WR137.pdf

Part Number VN-WGLD-0508-WR137
Operating Frequency ( GHz ) 5.85-8.2
Impedance ( Ohm ) 50
VSWR ≤1.02
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR137(BJ70)

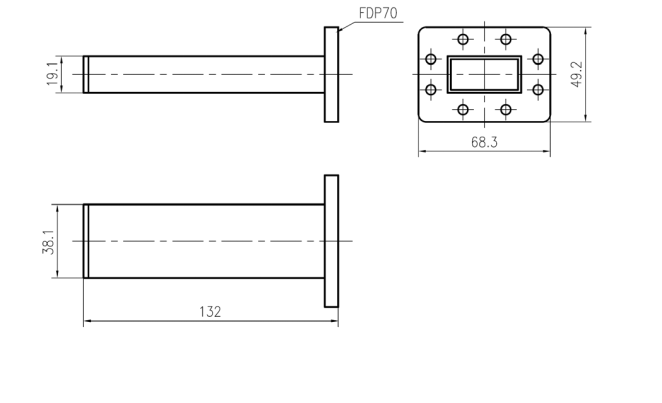

Dimension(mm) As below
Handling Power 6 CW(Watt, max)
ROHS Compliance Yes

5.85-8.2GHz WR-137 WAVEGUIDE LOAD
