5.85-8.2GHz VN-WGLD-0508-WR137-P1500 WAVEGUIDE LOAD
5.85-8.2GHz VN-WGLD-0508-WR137-P1500 WAVEGUIDE LOAD
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-0508-WR137-P1500
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-0508-WR137-P1500
Operating Frequency ( GHz ) :
5.85-8.2
Impedance ( Ohm ) :
50
VSWR :
≤1.1
Interface :
WR137(BJ70)
Description

5.85-8.2GHz WR-137 WAVEGUIDE LOAD

  • Effective absorption of microwave energy
  • Low insertion loss
  • Repeatable measurement conditions

  • Protection of Sensitive Components:
    During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

  • Port Termination:
    Connect the flanged input of the WAVEGUIDE LOAD directly to an unused waveguide port, circulator port, or directional coupler port. Ensure the flange type (e.g., UG, CPR, cover, choke) matches the system.

  • Cooling Requirement:

    • Low‑power WAVEGUIDE LOAD → natural air cooling.

    • Medium‑power → forced air cooling (e.g., built‑in fan).

    • High‑power → water‑cooled WAVEGUIDE LOAD with circulating deionized water.

VN-WGLD-0508-WR137-P1500.pdf

Part Number VN-WGLD-0508-WR137-P1500
Operating Frequency ( GHz ) 5.85-8.2
Impedance ( Ohm ) 50
VSWR ≤1.10
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR137(BJ70)

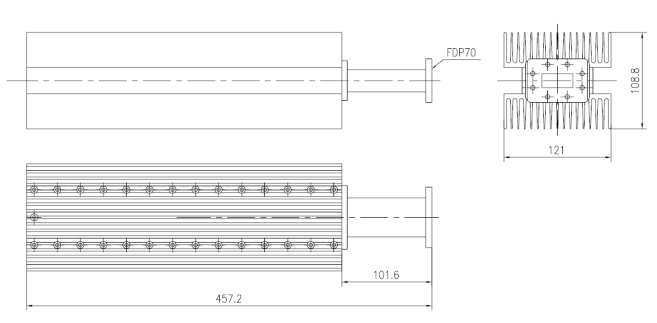

Dimension(mm) As below
Handling Power 1500 CW(Watt, max)
ROHS Compliance Yes
