8.2-12.4GHz WR-90 WAVEGUIDE LOAD
8.2-12.4GHz WR-90 WAVEGUIDE LOAD
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-0812-WR90
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-0812-WR90
Operating Frequency ( GHz ) :
8.2-12.4
Impedance ( Ohm ) :
50
VSWR :
≤1.03
Interface :
WR137(BJ70)
Description

8.2-12.4GHz WR-137 WAVEGUIDE LOAD

  • Broadband operation
  • Low VSWR (Voltage Standing Wave Ratio)
  • Protection of sensitive transmitter components

WAVEGUIDE LOAD is not an option – it is a mandatory component in any non‑radiating waveguide setup. Always verify the power rating, flange type, and cooling method before deploying a WAVEGUIDE LOAD in your system.

A WAVEGUIDE LOAD is a passive, non-radiating termination device used in waveguide transmission systems. Its primary electrical characteristic is to present a matched impedance (typically 50 ohms equivalent or the waveguide’s characteristic impedance) to the source, thereby absorbing incident microwave energy with minimal reflection.

oupler port. Ensure the flange type (e.g., UG, CPR, cover, choke) matches the system.

VN-WGLD-0812-WR90.pdf

Part Number VN-WGLD-0812-WR90
Operating Frequency ( GHz ) 8.2-12.4
Impedance ( Ohm ) 50
VSWR ≤1.03
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR90(BJ100)

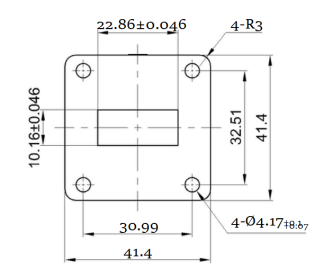

Dimension(mm) As below
Handling Power 2 (Watt, max)
ROHS Compliance Yes
