21.7-33GHz WR-34 WAVEGUIDE LOAD VN-WGLD-2133-WR34
21.7-33GHz WR-34 WAVEGUIDE LOAD VN-WGLD-2133-WR34
21.7-33GHz WR-34 WAVEGUIDE LOAD VN-WGLD-2133-WR34
21.7-33GHz WR-34 WAVEGUIDE LOAD VN-WGLD-2133-WR34
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-2133-WR34
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-2133-WR34
Operating Frequency ( GHz ) :
21.7-33
Impedance ( Ohm ) :
50
VSWR :
≤1.03
Interface :
WR34(BJ260)
Description

21.7-33GHz WR-34 WAVEGUIDE LOAD

  • Low VSWR (Voltage Standing Wave Ratio)
  • High power handling capability
  • Effective absorption of microwave energy

  • Radar Systems:
  • Every radar transmitter test bench includes a high‑power WAVEGUIDE LOAD to absorb energy when the antenna is disconnected.
  • Satellite Communication (Satcom) Ground Stations:
  • A WAVEGUIDE LOAD terminates calibration paths or unused upconverter ports in the outdoor unit (ODU).
  • Electronic Warfare (EW) Systems:
  • In EW receiver protection circuits, a WAVEGUIDE LOAD absorbs leakage power from limiters or switches.
  • Medical Equipment (e.g., microwave diathermy):
  • During maintenance, a WAVEGUIDE LOAD replaces the applicator to safely test the generator.
  • Academic & Research Laboratories:
  • A WAVEGUIDE LOAD is essential for waveguide measurement setups, such as slotted line experiments or material permittivity characterization.
  • Aerospace & Defense Manufacturing:
  • Every waveguide‑based subsystem (e.g., ECM pods, missile seekers) is burned‑in with a WAVEGUIDE LOAD to simulate real load conditions.

VN-WGLD-2133-WR34.pdf

Part Number VN-WGLD-2133-WR34
Operating Frequency ( GHz ) 21.7-33
Impedance ( Ohm ) 50
VSWR ≤1.03
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR34(BJ260)

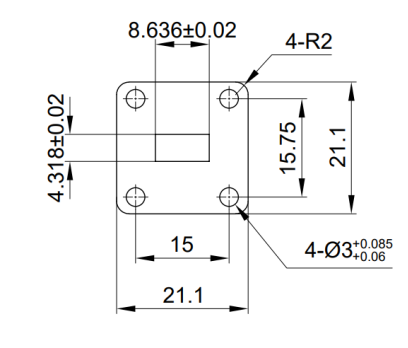

Dimension(mm) As below
Handling Power 2 (Watt, max)
ROHS Compliance Yes

21.7-33GHz WR-34 WAVEGUIDE LOAD VN-WGLD-2133-WR3421.7-33GHz WR-34 WAVEGUIDE LOAD VN-WGLD-2133-WR34
