33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22
33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22
33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22
33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-3350-WR22
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-3350-WR22
Operating Frequency ( GHz ) :
33-50
Impedance ( Ohm ) :
50
VSWR :
≤1.06
Interface :
WR22(BJ400)
Description

33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22

  • Low insertion loss (by design, as a terminating load)
  • Easy flange integration (UG, CPR, cover, choke)
  • Available in air‑cooled, forced‑air, and water‑cooled versions

  • Installation Orientation:
  • Some high‑power WAVEGUIDE LOAD must be mounted with the fins vertical to optimize convection. Always follow the datasheet of that specific WAVEGUIDE LOAD.
  • Verification:
  • After installation, use a network analyzer to confirm that the WAVEGUIDE LOAD presents a return loss better than 30 dB (VSWR < 1.065).
  • Protection of Sensitive Components:During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

VN-WGLD-3350-WR22.pdf

Part Number VN-WGLD-3350-WR22
Operating Frequency ( GHz ) 33-50
Impedance ( Ohm ) 50
VSWR ≤1.06
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR22(BJ400)

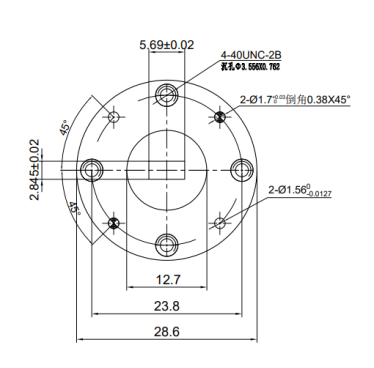

Dimension(mm) As below
Handling Power 2 (Watt, max)
ROHS Compliance Yes
