5.85-8.2GHz WR-137 WAVEGUIDE LOAD VN-WGLD-0508-WR137-P25
5.85-8.2GHz WR-137 WAVEGUIDE LOAD VN-WGLD-0508-WR137-P25
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-0508-WR137-P25
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-0508-WR137-P25
Operating Frequency ( GHz ) :
5.85-8.2
Impedance ( Ohm ) :
50
VSWR :
≤1.1
Interface :
WR137(BJ70)
Description

5.85-8.2GHz WR-137 WAVEGUIDE LOAD

  • Stable impedance matching
  • Effective absorption of microwave energy
  • Suitable for high‑power and low‑power applications

A WAVEGUIDE LOAD is a passive, non-radiating termination device used in waveguide transmission systems. Its primary electrical characteristic is to present a matched impedance (typically 50 ohms equivalent or the waveguide’s characteristic impedance) to the source, thereby absorbing incident microwave energy with minimal reflection.

  • Radar Systems:
    Every radar transmitter test bench includes a high‑power WAVEGUIDE LOAD to absorb energy when the antenna is disconnected.

  • Satellite Communication (Satcom) Ground Stations:
    A WAVEGUIDE LOAD terminates calibration paths or unused upconverter ports in the outdoor unit (ODU).

  • Electronic Warfare (EW) Systems:
    In EW receiver protection circuits, a WAVEGUIDE LOAD absorbs leakage power from limiters or switches.

  • Medical Equipment (e.g., microwave diathermy):
    During maintenance, a WAVEGUIDE LOAD replaces the applicator to safely test the generator.

  • Academic & Research Laboratories:
    A WAVEGUIDE LOAD is essential for waveguide measurement setups, such as slotted line experiments or material permittivity characterization.

  • Aerospace & Defense Manufacturing:
    Every waveguide‑based subsystem (e.g., ECM pods, missile seekers) is burned‑in with a WAVEGUIDE LOAD to simulate real load conditions.

VN-WGLD-0508-WR137-P25.pdf

Part Number VN-WGLD-0508-WR137-P25
Operating Frequency ( GHz ) 5.85-8.2
Impedance ( Ohm ) 50
VSWR ≤1.1
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR137(BJ70)

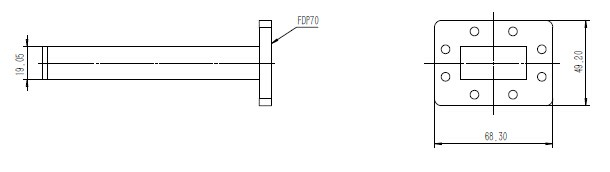

Dimension(mm) As below
Handling Power 25 CW(Watt, max)
ROHS Compliance Yes

5.85-8.2GHz WR-137 WAVEGUIDE LOAD VN-WGLD-0508-WR137-P255.85-8.2GHz WR-137 WAVEGUIDE LOAD VN-WGLD-0508-WR137-P25

5.85-8.2GHz WR-137 WAVEGUIDE LOAD VN-WGLD-0508-WR137-P25
