49.8-75.8GHz WR-15 WAVEGUIDE LOAD VN-WGLD-5076-WR15
49.8-75.8GHz WR-15 WAVEGUIDE LOAD VN-WGLD-5076-WR15
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGLD-5076-WR15
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Part Number :
VN-WGLD-5076-WR15
Operating Frequency ( GHz ) :
49.8-75.8
Impedance ( Ohm ) :
50
VSWR :
≤1.08
Interface :
WR15(BJ620)
Description

49.8-75.8GHz WR-15 WAVEGUIDE LOAD

  • Low insertion loss (by design, as a terminating load)

  • Repeatable measurement conditions

  • Reliable termination of unused waveguide ports

  • What it does: A WAVEGUIDE LOAD terminates a waveguide port without reflection → it absorbs energy as heat.

  • Why you need it: Without a WAVEGUIDE LOAD, standing waves and reflected power damage sources.

  • In short, WAVEGUIDE LOAD is not an option – it is a mandatory component in any non‑radiating waveguide setup. Always verify the power rating, flange type, and cooling method before deploying a WAVEGUIDE LOAD in your system.

  • Where it fits: Between a waveguide component and a heat sink (e.g., in the dummy port of a 4‑port circulator).

  • Every RF engineer must know how to select and install a WAVEGUIDE LOAD for safe, repeatable microwave measurements.

VN-WGLD-5076-WR15.pdf

Part Number VN-WGLD-5076-WR15
Operating Frequency ( GHz ) 49.8-75.8
Impedance ( Ohm ) 50
VSWR ≤1.08
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR15(BJ620)

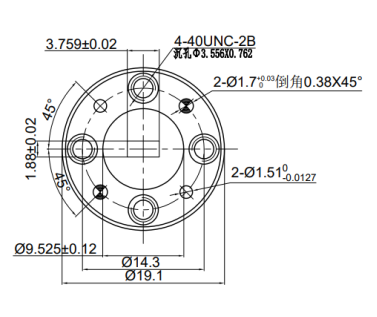

Dimension(mm) As below
Handling Power 0.5 (Watt, max)
ROHS Compliance Yes
