18-26.5GHz WR-42 WAVEGUIDE MAGIC T
18-26.5GHz WR-42 WAVEGUIDE MAGIC T
Specifications
Symmetry(dB) :
±0.4
Insertion Loss(dB) :
1.3:1(Typical surfance)
Operating Frequency ( GHz ) :
18-26.5
Payment Terms :
L/C, D/A, D/P, T/T
Isolation(dB) :
≥30
Certification :
ISO 9000 ROHS
Place of Origin :
China
Brand Name :
Vinncom
Part Number :
VN-WGMT-1826-WR42
Model Number :
VN-WGMT-1826-WR42
Price :
negotiable
VSWR E-plane :
1.5:1(Typical surfance)
Supply Ability :
500
MOQ :
5 pcs
Description

18-26.5GHz WR-42 WAVEGUIDE MAGIC T

  • High directivity and isolation (typically >30 dB)
  • High power handling capability
  • Rugged and precision‑machined waveguide construction

  1. Phase comparators and detectors –
    A WAVEGUIDE MAGIC T compares the phase difference between two input signals at the collinear ports.

  2. Sum‑and‑difference (monopulse) radar systems –
    A WAVEGUIDE MAGIC T generates the sum (Σ) and difference (Δ) channels from four antenna quadrant signals for angle tracking.

  3. Power combiners and dividers –
    A WAVEGUIDE MAGIC T equally splits a high‑power signal into two paths, or combines two signals into one.

  4. In every working scenario, a WAVEGUIDE MAGIC T acts as a precise balanced hybrid junction that performs either in‑phase or anti‑phase power division and combination.

Part Number VN-WGMT-1826-WR42
Operating Frequency ( GHz ) 18-26.5
Insertion Loss(dB) 0.6
VSWR H-plane 1.3:1(Typical surfance)
VSWR E-plane 1.5:1(Typical surfance)
Symmetry(dB) ±0.4
Isolation(dB) ≥30
Interface WR42 (BJ220)

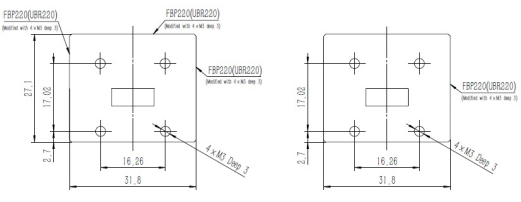

Dimension(mm) As below
Bandwidth FULL
ROHS Compliance Yes
