8.2-12.4GHz WR-90 WAVEGUIDE MAGIC T
8.2-12.4GHz WR-90 WAVEGUIDE MAGIC T
Specifications
Model Number :
VN-WGMT-0812-WR90
Operating Frequency ( GHz ) :
8.2-12.4
Brand Name :
Vinncom
Part Number :
VN-WGMT-0812-WR90
Payment Terms :
L/C, D/A, D/P, T/T
Isolation(dB) :
≥30
Price :
negotiable
Symmetry(dB) :
±0.4
Supply Ability :
500
MOQ :
5 pcs
VSWR E-plane :
1.5:1(Typical surfance)
Certification :
ISO 9000 ROHS
VSWR H-plane :
50
Place of Origin :
China
Insertion Loss(dB) :
1.3:1(Typical surfance)
Description

8.2-12.4GHz WR-90 WAVEGUIDE MAGIC T

  • Frequency range from 1 GHz to 110 GHz+
  • Enables monopulse radar tracking (sum/delta channels)
  • Rugged and precision‑machined waveguide construction

How to Use a WAVEGUIDE MAGIC T (Usage Method)

  1. Identify the four ports –
    A WAVEGUIDE MAGIC T has clearly marked ports: E‑arm (perp 1), H‑arm (perp 2), and two collinear arms (left and right).

  2. Match flange types –
    A WAVEGUIDE MAGIC T requires the same flange type (UG, CPR, cover, or choke) as all connected waveguide components.

  3. Connect source to E‑arm –
    For anti‑phase power division, feed the input signal into the E‑arm of the WAVEGUIDE MAGIC T.

  4. Connect source to H‑arm –
    For in‑phase power division, feed the input signal into the H‑arm of the WAVEGUIDE MAGIC T.

  5. Use collinear arms as outputs –
    The two collinear arms of a WAVEGUIDE MAGIC T serve as balanced outputs, each receiving half the input power.

Part Number VN-WGMT-0812-WR90
Operating Frequency ( GHz ) 8.2-12.4
Insertion Loss(dB) 0.8
VSWR H-plane 1.3:1(Typical surfance)
VSWR E-plane 1.5:1(Typical surfance)
Symmetry(dB) ±0.4
Isolation(dB) ≥30
Interface WR90 (BJ100)

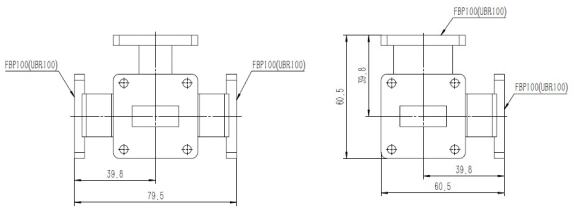

Dimension(mm) As below
Bandwidth FULL
ROHS Compliance Yes

8.2-12.4GHz WR-90 WAVEGUIDE MAGIC T

8.2-12.4GHz WR-90 WAVEGUIDE MAGIC T
