15-22GHz WR-51 WAVEGUIDE MAGIC T
15-22GHz WR-51 WAVEGUIDE MAGIC T
Specifications
MOQ :
5 pcs
Part Number :
VN-WGMT-1522-WR51
Certification :
ISO 9000 ROHS
Model Number :
VN-WGMT-1522-WR51
Brand Name :
Vinncom
Payment Terms :
L/C, D/A, D/P, T/T
VSWR E-plane :
1.5:1(Typical surfance)
Price :
negotiable
Symmetry(dB) :
±0.4
Supply Ability :
500
Insertion Loss(dB) :
1.3:1(Typical surfance)
Isolation(dB) :
≥30
Place of Origin :
China
Operating Frequency ( GHz ) :
15-22
Description

15-22GHz WR-51 WAVEGUIDE MAGIC T

  • Stable performance over temperature and vibration
  • Simplifies balanced mixer and phase detector designs
  • Broad bandwidth operation (multi‑octave possible)

  1. Connect source to H‑arm –
    For in‑phase power division, feed the input signal into the H‑arm of the WAVEGUIDE MAGIC T.

  2. Use collinear arms as outputs –
    The two collinear arms of a WAVEGUIDE MAGIC T serve as balanced outputs, each receiving half the input power.

  3. Use as a combiner –
    Feed two signals into the collinear arms of a WAVEGUIDE MAGIC T; the sum appears at the H‑arm and the difference appears at the E‑arm.

  4. Terminate unused ports –
    Any unused port of a WAVEGUIDE MAGIC T must be terminated with a matched WAVEGUIDE LOAD to prevent reflections.

  5. Power rating check –
    Before operating a WAVEGUIDE MAGIC T, verify the average and peak power ratings for all four ports.

Part Number VN-WGMT-1522-WR51
Operating Frequency ( GHz ) 15-22
VSWR H-plane 1.3:1(Typical surfance)
VSWR E-plane 1.5:1(Typical surfance)
Symmetry(dB) ±0.4
Isolation(dB) ≥30
Interface WR51 (BJ180)

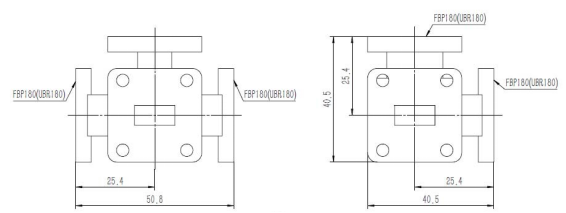

Dimension(mm) As below
Bandwidth FULL
ROHS Compliance Yes
