10-15GHz WR-75 WAVEGUIDE MAGIC T
10-15GHz WR-75 WAVEGUIDE MAGIC T
Specifications
Operating Frequency ( GHz ) :
10-15
Model Number :
VN-WGMT-1015-WR75
Supply Ability :
500
Part Number :
VN-WGMT-1015-WR75
Brand Name :
Vinncom
Payment Terms :
L/C, D/A, D/P, T/T
Isolation(dB) :
≥30
Price :
negotiable
Symmetry(dB) :
±0.4
MOQ :
5 pcs
Insertion Loss(dB) :
1.3:1(Typical surfance)
Certification :
ISO 9000 ROHS
VSWR E-plane :
1.5:1(Typical surfance)
Place of Origin :
China
Description

10-15GHz WR-75 WAVEGUIDE MAGIC T

  • Complete isolation between E‑arm and H‑arm
  • Low insertion loss in all paths
  • Rugged and precision‑machined waveguide construction

Application Scenarios / Working Scenarios of a WAVEGUIDE MAGIC T

  • Balanced mixers –
    A WAVEGUIDE MAGIC T combines the local oscillator (LO) signal and the RF signal in an image‑rejection mixer architecture.

  • Phase comparators and detectors –
    A WAVEGUIDE MAGIC T compares the phase difference between two input signals at the collinear ports.

  • Sum‑and‑difference (monopulse) radar systems –
    A WAVEGUIDE MAGIC T generates the sum (Σ) and difference (Δ) channels from four antenna quadrant signals for angle tracking.

  • Power combiners and dividers –
    A WAVEGUIDE MAGIC T equally splits a high‑power signal into two paths, or combines two signals into one.

  • Reflectometer and VSWR measurement systems –
    A WAVEGUIDE MAGIC T separates forward and reflected waves in a directional bridge configuration.

Part Number

VN-WGMT-1015-WR75

Operating Frequency ( GHz )

10-15

VSWR H-plane

1.3:1(Typical surfance)

VSWR E-plane

1.5:1(Typical surfance)

Symmetry(dB)

±0.4

Isolation(dB)

≥30

Interface

WR75 (BJ120)

Dimension(mm)

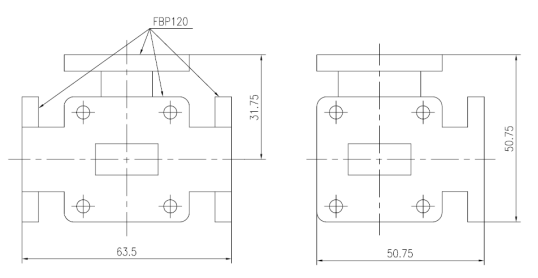

As below

Bandwidth

FULL

ROHS Compliance

Yes

10-15GHz WR-75 WAVEGUIDE MAGIC T

10-15GHz WR-75 WAVEGUIDE MAGIC T
