5.85-8.2GHz WR-137 WAVEGUIDE MAGIC T
5.85-8.2GHz WR-137 WAVEGUIDE MAGIC T
Specifications
Model Number :
VN-WGMT-0508-WR137
Operating Frequency ( GHz ) :
5.85-8.2
Supply Ability :
500
Brand Name :
Vinncom
Part Number :
VN-WGMT-0508-WR137
Payment Terms :
L/C, D/A, D/P, T/T
Isolation(dB) :
≥30
Price :
negotiable
Symmetry(dB) :
±0.4
MOQ :
5 pcs
VSWR E-plane :
1.5:1(Typical surfance)
Certification :
ISO 9000 ROHS
VSWR H-plane :
50
Place of Origin :
China
Insertion Loss(dB) :
1.3:1(Typical surfance)
Description

5.85-8.2GHz WR-137 WAVEGUIDE MAGIC T

  • Rugged and precision‑machined waveguide construction
  • High directivity and isolation (typically >30 dB)
  • High power handling capability

Working Principle of a WAVEGUIDE MAGIC T

A WAVEGUIDE MAGIC T is a four‑port waveguide junction that combines the properties of an E‑plane tee and an H‑plane tee.
A WAVEGUIDE MAGIC T has four ports: the E‑arm (port 1), the H‑arm (port 2), and two collinear arms (ports 3 and 4).
A WAVEGUIDE MAGIC T exhibits two key characteristics: impedance matching at all ports and isolation between specific port pairs.
In a WAVEGUIDE MAGIC T, the E‑arm and H‑arm are inherently isolated from each other—a signal injected into the E‑arm does not appear at the H‑arm, and vice versa.
A WAVEGUIDE MAGIC T also provides power division: a signal fed into the E‑arm is equally split between the two collinear arms (ports 3 and 4) with opposite phase (180° difference).
Conversely, a WAVEGUIDE MAGIC T fed from the H‑arm equally splits power between the two collinear arms with equal phase (0° difference).
When signals are applied to the collinear arms of a WAVEGUIDE MAGIC T, the E‑arm outputs the vector sum (difference), and the H‑arm outputs the vector sum (addition) of the two inputs.
A WAVEGUIDE MAGIC T achieves these properties through precise geometrical design of the junction, using internal matching posts or irises.
Because of its balanced structure, a WAVEGUIDE MAGIC T operates as a 3‑dB hybrid coupler with inherent phase and amplitude symmetry.

Part Number VN-WGMT-0508-WR137
Operating Frequency ( GHz ) 5.85-8.2
VSWR H-plane 1.3:1(Typical surfance)
VSWR E-plane 1.5:1(Typical surfance)
Symmetry(dB) ±0.4
Isolation(dB) ≥30
Interface WR137 (BJ70)

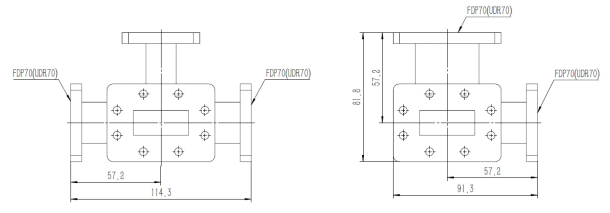

Dimension(mm) As below
Bandwidth FULL
ROHS Compliance Yes

5.85-8.2GHz WR-137 WAVEGUIDE MAGIC T

5.85-8.2GHz WR-137 WAVEGUIDE MAGIC T
