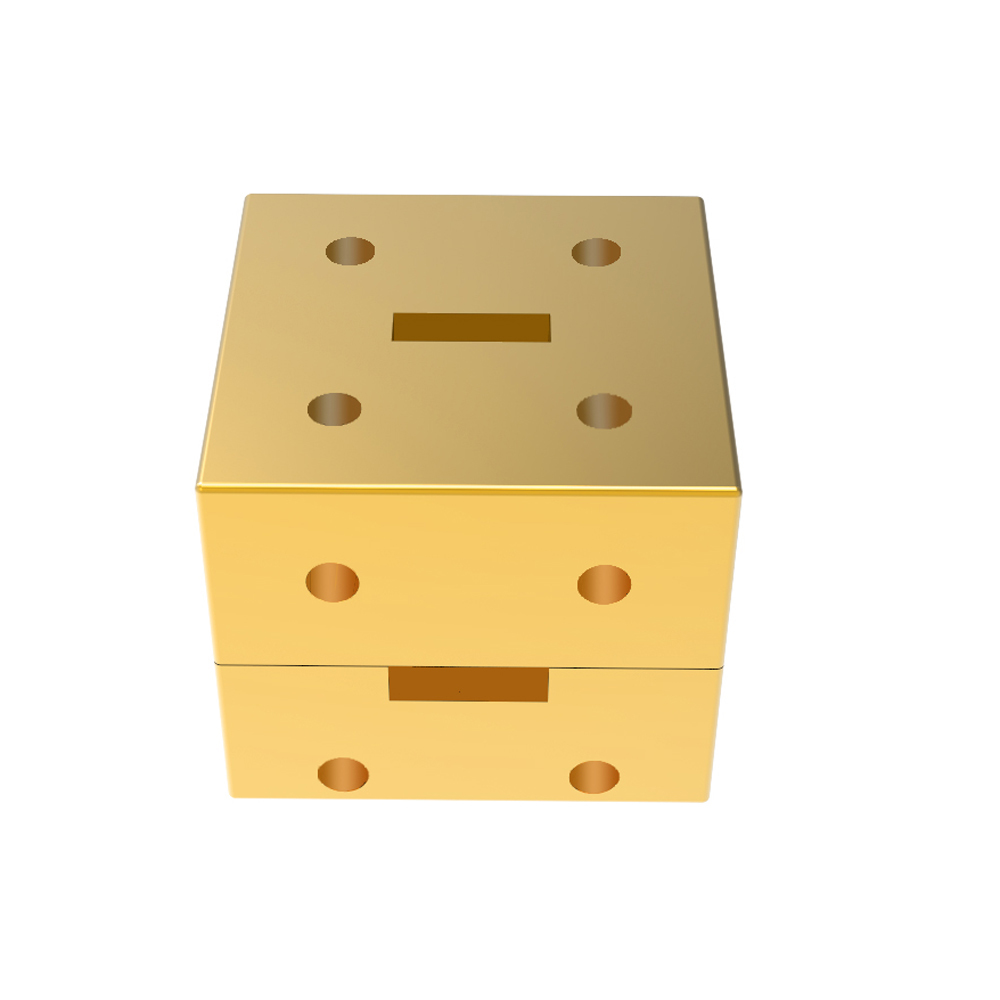

26.5-40GHz WR-28 WAVEGUIDE MAGIC T
26.5-40GHz WR-28 WAVEGUIDE MAGIC T
Specifications
Model Number :
VN-WGMT-2640-WR28
Operating Frequency ( GHz ) :
26.5-40
Price :
negotiable
Isolation(dB) :
≥30
Certification :
ISO 9000 ROHS
Insertion Loss(dB) :
1.3:1(Typical surfance)
MOQ :
5 pcs
Symmetry(dB) :
±0.4
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500
Brand Name :
Vinncom
Part Number :
VN-WGMT-2640-WR28
Place of Origin :
China
VSWR E-plane :
1.5:1(Typical surfance)
Description

26.5-40GHz WR-28 WAVEGUIDE MAGIC T

  • Frequency range from 1 GHz to 110 GHz+
  • Passive device – no external power required
  • High directivity and isolation (typically >30 dB)

  1. A WAVEGUIDE MAGIC T also provides power division: a signal fed into the E‑arm is equally split between the two collinear arms (ports 3 and 4) with opposite phase (180° difference).
    Conversely, a WAVEGUIDE MAGIC T fed from the H‑arm equally splits power between the two collinear arms with equal phase (0° difference).
    When signals are applied to the collinear arms of a WAVEGUIDE MAGIC T, the E‑arm outputs the vector sum (difference), and the H‑arm outputs the vector sum (addition) of the two inputs.

  2. Connect source to E‑arm –
    For anti‑phase power division, feed the input signal into the E‑arm of the WAVEGUIDE MAGIC T.

  3. Connect source to H‑arm –
    For in‑phase power division, feed the input signal into the H‑arm of the WAVEGUIDE MAGIC T.

  4. Phase comparators and detectors –
    A WAVEGUIDE MAGIC T compares the phase difference between two input signals at the collinear ports.

  5. Sum‑and‑difference (monopulse) radar systems –
    A WAVEGUIDE MAGIC T generates the sum (Σ) and difference (Δ) channels from four antenna quadrant signals for angle tracking.

Part Number VN-WGMT-2640-WR28
Operating Frequency ( GHz ) 26.5-40
VSWR H-plane 1.3:1(Typical surfance)
VSWR E-plane 1.5:1(Typical surfance)
Symmetry(dB) ±0.4
Isolation(dB) ≥30
Interface WR28 (BJ320)

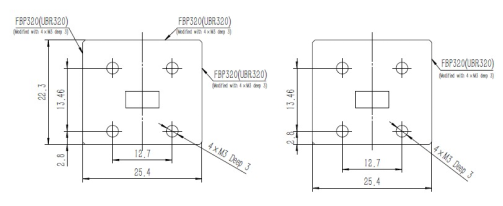

Dimension(mm) As below
Bandwidth FULL
ROHS Compliance Yes

26.5-40GHz WR-28 WAVEGUIDE MAGIC T

26.5-40GHz WR-28 WAVEGUIDE MAGIC T26.5-40GHz WR-28 WAVEGUIDE MAGIC T
