89-99GHz WR-10 WAVEGUIDE FILTER
89-99GHz WR-10 WAVEGUIDE FILTER
Specifications
Model Number :
VN-WGFLT-8999-WR10
Operating Frequency ( GHz ) :
89-99
Payment Terms :
L/C, D/A, D/P, T/T
Price :
negotiable
Interface :
WR10(BJ900)
Supply Ability :
500
Brand Name :
Vinncom
Part Number :
VN-WGFLT-8999-WR10
MOQ :
5 pcs
VSWR(dB) :
2
Certification :
ISO 9000 ROHS
Impedance ( Ohm ) :
50
Place of Origin :
China
Insertion Loss(dB) :
≤3
Description

89-99GHz WR-10 WAVEGUIDE FILTER

  • Temperature‑stable performance (metal construction)
  • Low insertion loss in the passband
  • Excellent rejection of harmonics and spurious signals

Working Principle of a WAVEGUIDE FILTER

A WAVEGUIDE FILTER is a passive frequency‑selective waveguide component.
A WAVEGUIDE FILTER allows signals within a specific frequency band to pass with very low insertion loss.
Outside that passband, a WAVEGUIDE FILTER provides high attenuation (rejection) to unwanted signals.

How to Use a WAVEGUIDE FILTER (Usage Method)

  1. Select the correct filter type –
    Choose a WAVEGUIDE FILTER that matches the required response: band‑pass, low‑pass, high‑pass, or band‑stop.

  2. Verify frequency range –
    A WAVEGUIDE FILTER must have its center frequency and bandwidth aligned with your system's operating frequency.

Part Number VN-WGFLT-8999-WR10
Operating Frequency ( GHz ) 89-99
Rejection(dB) 50 min@87GHz/30 min@102GHz
Insertion Loss(dB) ≤3.0
VSWR 2.0:1
Interface WR10(BJ900)
Operating Temperature ( ℃ ) -40 ~ + 80

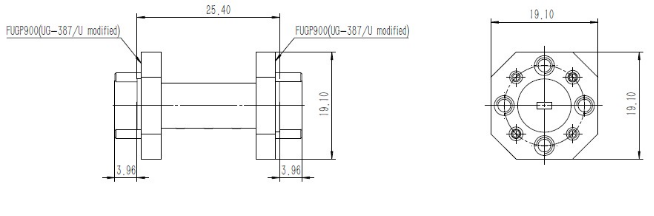

Dimension(mm) As below
ROHS Compliance Yes

89-99GHz WR-10 WAVEGUIDE FILTER

89-99GHz WR-10 WAVEGUIDE FILTER
