12-18GHz WR-62 WAVEGUIDE MAGIC T
12-18GHz WR-62 WAVEGUIDE MAGIC T
Specifications
Model Number :
VN-WGMT-1015-WR75
Operating Frequency ( GHz ) :
12-18
Payment Terms :
L/C, D/A, D/P, T/T
Price :
negotiable
Isolation(dB) :
≥30
Supply Ability :
500
Brand Name :
Vinncom
Part Number :
VN-WGMT-1218-WR62
MOQ :
5 pcs
Symmetry(dB) :
±0.4
Certification :
ISO 9000 ROHS
Insertion Loss(dB) :
1.3:1(Typical surfance)
Place of Origin :
China
VSWR E-plane :
1.5:1(Typical surfance)
Description

12-18GHz WR-62 WAVEGUIDE MAGIC T

  • Suitable for pulsed and CW systems
  • Passive device – no external power required
  • Low insertion loss in all paths

Application Scenarios / Working Scenarios of a WAVEGUIDE MAGIC T

  • Network analyzer calibration –
    A WAVEGUIDE MAGIC T is used in balanced or differential measurements to create precise phase‑controlled test signals.

  • Phased‑array antenna feed networks –
    A WAVEGUIDE MAGIC T provides balanced feeding to array elements with controlled phase relationships.

  • Electronic warfare (EW) systems –
    A WAVEGUIDE MAGIC T is used in instantaneous frequency measurement (IFM) receivers to detect signal angle of arrival.

  • Interferometer systems –
    A WAVEGUIDE MAGIC T combines two antenna signals to measure phase differences for direction‑finding applications.

  • Radar transceiver isolation –
    A WAVEGUIDE MAGIC T can separate the transmit and receive paths when used with balanced diodes.

  • Research laboratories –
    A WAVEGUIDE MAGIC T is an essential component in many microwave experiment setups for demonstrating hybrid junction properties.

Part Number VN-WGMT-1218-WR62
Operating Frequency ( GHz ) 12-18
VSWR H-plane 1.3:1(Typical surfance)
VSWR E-plane 1.5:1(Typical surfance)
Symmetry(dB) ±0.4
Isolation(dB) ≥30
Interface WR62 (BJ140)

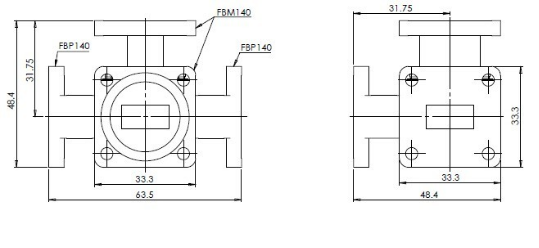

Dimension(mm) As below
Bandwidth FULL
ROHS Compliance Yes

12-18GHz WR-62 WAVEGUIDE MAGIC T

12-18GHz WR-62 WAVEGUIDE MAGIC T
