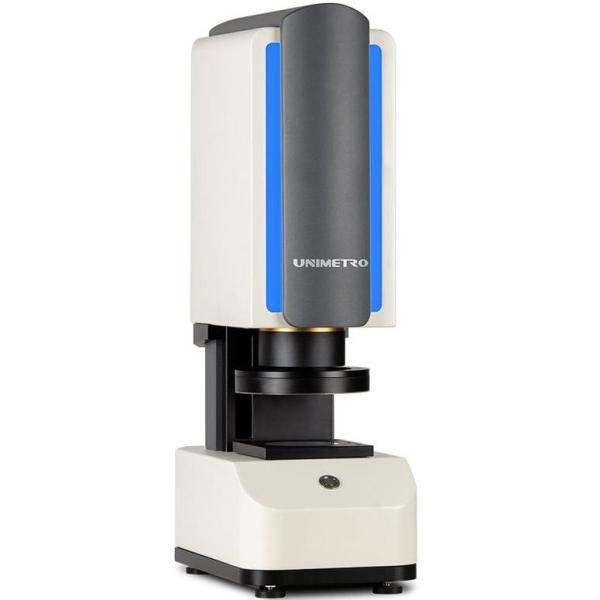

Digital Micro Vickers Hardness Tester with Optical System and High Internal Storage Capacity
Digital Micro Vickers Hardness Tester with Optical System and High Internal Storage Capacity
Specifications
Internal memory capability :
120 testing records
Magnification of the measuring microscope :
100X, 200X
Carriage control :
Full-automatic (loading / holding-up of loading / unloading)
Testing force :
4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N
Brand Name :
UNIMETRO
Model Number :
HV-30Z
Place of Origin :
China
MOQ :
1
Price :
Discussible
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
8 work days
Packaging Details :
Wood case
Power supply :
110V/220V/, 60/50Hz
Turret :
Automatic
Description
Digital Micro Vickers Hardness Tester with Optical System and High Internal Storage Capacity
Duo Optical System Vickers Micro Hardness Tester with Auto Turret and Internal Memory
Key Features:
  • Internal memory storage - all specifications saved after power off with database capacity of 6 groups, 20 records each
  • Dual optical terminal system - simultaneous observation and measurement via eyepiece and monitor during automatic indentation measurement
  • Large LCD display with manual selection function for easy operation
  • Wide application range including ferrous/non-ferrous metals, IC thin pieces, surface coatings, glass, ceramics, and hardened layers
Technical Specifications
Testing Force 4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N
(0.5, 1, 2, 3, 5, 10, 30 Kgf)
Carriage Control Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification 100X, 200X
Holding Time 0-60 seconds
Test Drum Wheel Graduation 0.25μm, 0.125μm
Testing Range 5-3999 HV
Max Specimen Height 200 mm
Max Specimen Width 130 mm
Power Supply 110V/220V, 60/50Hz
Dimensions 550 × 210 × 580 mm
Weight 35 kg
Standard Accessories
  • Vickers indenter
  • 10X eyepiece
  • Working stage
  • V type working stage
  • Gradienter
  • Level adjusting screw
  • Vickers hardness block
  • RS232 communication cable
