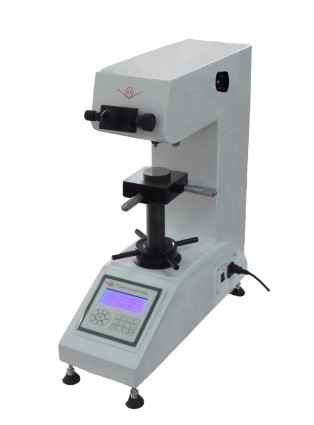

Low-Load Vickers Microhardness Tester with 100X and 400X Magnification
Low-Load Vickers Microhardness Tester with 100X and 400X Magnification
Specifications
Brand Name :
UNIMETRO
Model Number :
HV-5
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
8 work days
Packaging Details :
Wood case
Price :
Discussible
Programming :
C++ Language
Testing force :
1.96, 2.94, 4.90, 9.80, 19.6, 29.4, 49.0
Magnification of the measuring microscope :
100X, 400X
X, Y stage dimension :
100×100 mm
X,Y stage travel :
25×25 mm
Description
Low-Load Vickers Microhardness Tester with 100X and 400X Magnification
Product Overview

Advanced low-load Vickers microhardness tester featuring dual magnification capabilities and precise testing force control for comprehensive material analysis.

Key Advantages
  • Latest C++ programming for enhanced hardware reliability and stability
  • Unique and precise mechanical, electrical, and optical design
  • 7 testing force levels to meet various measurement requirements
  • Integrated LCD display with manual selection and scales switching functions
  • 10X and 40X objective lenses for observation and measurement
  • Precise locating structure replacing traditional spring sheets
  • High-performance optocoupler control during loading/unloading processes
  • Embedded halogen lamp illumination with 30,000+ hour lifespan
  • Excellent price-performance ratio
  • Industry-leading advanced technology
Applications

Suitable for a wide range of materials including:

  • Ferrous and non-ferrous metals, IC thin pieces, surface coatings, laminated metals
  • Glass, ceramics, agate, jewels, thin plastics
  • Hardness testing for charring layer depth and gradient of hardening layers
Technical Specifications
Parameter Specification
Testing Force 1.96, 2.94, 4.90, 9.80, 19.6, 29.4, 49.0 N
(0.2, 0.3, 0.5, 1.0, 2.0, 3.0, 5.0 Kgf)
Carriage Control Full-automatic (loading/holding-up of loading/unloading)
Microscope Magnification 100X, 400X
Holding Time 0-60 seconds
Min. Graduation Value 0.5μm
Testing Range 5HV - 3999HV
X, Y Stage Dimension 100 × 100 mm
X, Y Stage Travel 25 × 25 mm
Max. Specimen Height 200 mm
Max. Specimen Width 130 mm
Power Supply 110V/220V, 60/50Hz
Dimensions 550 × 210 × 580 mm
Weight 35 kg
Standard Accessories
  • Vickers indenter
  • 10X eyepiece
  • Gradienter
  • Cross testing stage
  • Level adjusting screw
  • Vickers hardness block
  • RS232 communication cable
Optional Accessories
  • Knoop indenter
  • Knoop hardness test standard block
  • SP-2008 vision measuring device
  • CCD indentation automatic measuring device
  • Working stage
  • V type working stage
  • Special specimen clamping stage
