Digital Micro Vickers Hardness Tester with Optical System and Large Internal Memory
Digital Micro Vickers Hardness Tester with Optical System and Large Internal Memory
Specifications
Brand Name :
UNIMETRO
Model Number :
HV-30Z
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
8 work days
Packaging Details :
Wood case
Price :
Discussible
Turret :
Automatic
Internal memory capability :
120 testing records
Testing force :
4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N
Magnification of the measuring microscope :
100X, 200X
Carriage control :
Full-automatic (loading / holding-up of loading / unloading)
Description

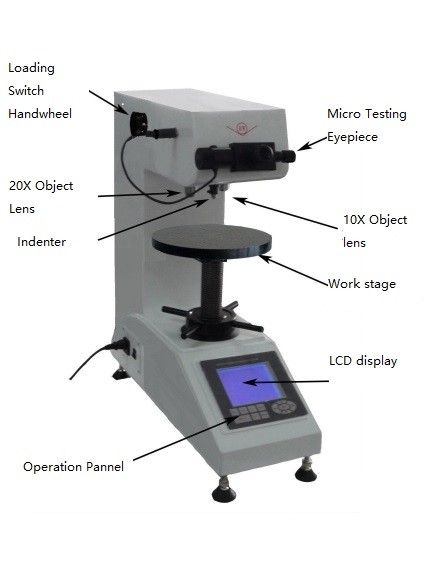

Digital Micro Vickers Hardness Tester with Optical System and Large Internal Memory
Duo Optical System Vickers Micro Hardness Tester

Advanced automatic turret hardness tester featuring dual optical terminals and extensive internal memory for reliable industrial testing applications.

Key Features
  • Large Internal Memory: Save all specifications after power-off with database capacity for 6 groups, each containing 20 records
  • Dual Optical Terminal System: Simultaneous observation and measurement via eyepiece and monitor during automatic indentation measurement
  • Large LCD Display: Manual selection function for easy and convenient operation
  • Wide Application Range: Suitable for ferrous metals, non-ferrous metals, IC thin pieces, surface coatings, laminated metals, glass, ceramics, agate, jewels, thin plastics, and hardness testing for depth and gradient of charring and hardening layers
Technical Specifications
Parameter Specification
Testing Force 4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N (0.5, 1, 2, 3, 5, 10, 30 Kgf)
Carriage Control Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification 100X, 200X
Holding Time 0-60 seconds
Test Drum Wheel Graduation 0.25μm, 0.125μm
Testing Range 5-3999 HV
Max Specimen Height 200 mm
Max Specimen Width 130 mm
Power Supply 110V/220V, 60/50Hz
Dimensions 550 × 210 × 580 mm
Weight 35 kg
Standard Accessories
  • Vickers indenter
  • 10X eyepiece
  • Working stage
  • V type working stage
  • Gradienter
  • Level adjusting screw
  • Vickers hardness block
  • RS232 communication cable
